HWS434

Features: • Low Insertion Loss : 0.70 dB @ 2 GHz• High Isolation: 34 dB @ 2 GHz• Low DC Power Consumption• Miniature SOP-8 Plastic Lead (Pb) Free Package, RoHS Compliant• PHEMT processPinoutSpecificationsRF Input Power .......+32 dBm @ -5VControl Voltage............. ...

product image

HWS434 Picture
See larger image
SeekIC No. : 004368034 Detail

HWS434: Features: • Low Insertion Loss : 0.70 dB @ 2 GHz• High Isolation: 34 dB @ 2 GHz• Low DC Power Consumption• Miniature SOP-8 Plastic Lead (Pb) Free Package, RoHS Compliant̶...

HWS434 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HWS434
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Insertion Loss : 0.70 dB @ 2 GHz
• High Isolation: 34 dB @ 2 GHz
• Low DC Power Consumption
• Miniature SOP-8 Plastic Lead (Pb) Free Package, RoHS Compliant
• PHEMT process

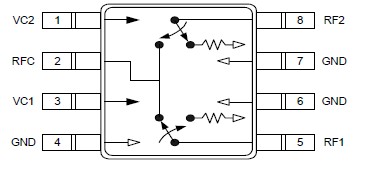

Pinout

Connection Diagram




Specifications

RF Input Power .......+32 dBm @ -5V
Control Voltage............. -8V
Operating Temperature . -40°C to +85°C
Storage Temperature ..-65°C to +150°C




Description

The HWS434 is a GaAs MMIC SPDT terminated (non-reflective) switch in a low cost SOP-8 plastic lead (Pb) free package. It features low insertion loss and high isolation with very low DC power consumption. Typical applications include CATV and basestation systems for either SPDT or SPST functions.
