HWS433

Features: • Two Inputs, Two Outputs Switch Matrix• High Isolation• Low DC Power Consumption• Small TSSOP-16 Plastic Lead(Pb) Free Package• PHEMT process• Lead Free and RoHS Compliant Version of HWS417PinoutSpecifications Parameter Absolute Maximum RF In...

product image

HWS433 Picture
See larger image
SeekIC No. : 004368033 Detail

HWS433: Features: • Two Inputs, Two Outputs Switch Matrix• High Isolation• Low DC Power Consumption• Small TSSOP-16 Plastic Lead(Pb) Free Package• PHEMT process• Lead Fre...

HWS433 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HWS433
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two Inputs, Two Outputs Switch Matrix
• High Isolation
• Low DC Power Consumption
• Small TSSOP-16 Plastic Lead(Pb) Free Package
• PHEMT process
• Lead Free and RoHS Compliant Version of HWS417


Pinout

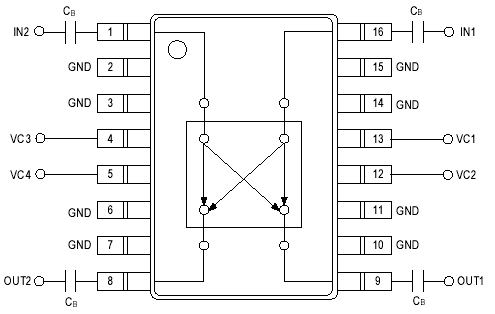

Connection Diagram


Specifications

Parameter Absolute Maximum
RF Input Power

Control Voltage

Operating Temperature

Storage Temperature		 +32 dBm @ +3V

+6V

-40 to +85

-65 to +150



Description

The HWS433 is a GaAs PHEMT 2x2 switch matrix operating at 0.95 to 2.15 GHz in a low cost TSSOP-16 plastic lead (Pb) free package. Any of the two inputs can be directed to any of the two outputs. It is suitable for use in Direct Broadcast Satellite (DBS) switching system or CATV applications.
