HVL3224QE

Features: The HVL3224QE has the following features:ㆍ65K color bitmap STN-LCD display controller ㆍMax 30 framesㆍRGB (5:6:5) format ㆍ16 bit BUS interfaceㆍLess afterimage than old productㆍMax display area (Horizontal 320 lines × Vertical 240 lines)ㆍLCD...

product image

HVL3224QE Picture
See larger image
SeekIC No. : 004367818 Detail

HVL3224QE: Features: The HVL3224QE has the following features:ㆍ65K color bitmap STN-LCD display controller ㆍMax 30 framesㆍRGB (5:6:5) format ㆍ16 bit BUS interfaceㆍLess afteri...

HVL3224QE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HVL3224QE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The HVL3224QE has the following features:
ㆍ65K color bitmap STN-LCD display controller ㆍMax 30 frames
ㆍRGB (5:6:5) format                                     ㆍ16 bit BUS interface
ㆍLess afterimage than old product
ㆍMax display area (Horizontal 320 lines × Vertical 240 lines)
ㆍLCD panel interface(frame, line, data 4 or 8 bits, clock(latch pulse), dispoff, bias)
ㆍExternal frame memory interface (SRAM)
ㆍMoving picture for the general color STN LCD panel
ㆍAny size support within the max size
ㆍColor inverting
ㆍDisplay On/Off
ㆍFlexible display resolution
ㆍDisplay data writing start line and column address set
ㆍPixel write and block write
ㆍBias selection
ㆍLogic supply (3.3V)
ㆍC-MOS silicon process
ㆍLow current consumption
ㆍPackage (100 pin TQFP)


Pinout

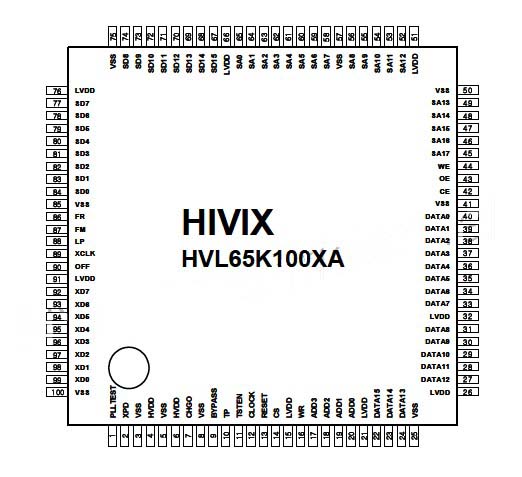

Connection Diagram


Specifications

Item
Symbol
Limits
Unit
Power Supply Voltage
VDD
-0.3 to 4.0
V
Input Voltage
VI
-0.3 to VDD + 0.5*1
V
Output Voltage
VO
-0.3 to VDD + 0.5*1
V
Output Current/Pin
IOUT
±30
mA
Storage Temperature
TSTG
±30
*1: Possibles to use from -0.3V to 7.0V of N channel open drain bi-directional buffers, input buffer in the IDC and IDH systems and Fail Safe cells.


Description

The HYVIX-MAIN-R003, color-graphics LCD controller board displays 320-by-240 dot graphics for 65K STN colors. A 16-bit high-speed bus interface and external highspeed SRAM write function enable efficient data transfers and high-speed rewriting of data to the graphics RAM. The feature of this product HVL3224QE is less afterimage than old product and possible 2 mode programming (pixel mode, block mode).

The HVL3224QE is suitable for any midsized product, such as PDA, digital camera, GPS and DVD/VCD player.
