Features:

` Operating voltage: 2.4V~3.5V
` Temperature range: -30 to +85
` low power, high performance M6502 core
` low power crystal oscillator control
 512/1200/2400 bps data rate operation
` "CCIR Radio Paging Code No.1" (POCSAG) compatible
` 76.8kHz crystal for all available data rates
` High/low system clock switching capability
` 44 Kbytes program ROM
` 848 bytes global data RAM
` Internal 2 Mbits Character ROM
` 256 Kbits internal SRAM
` External option up to 2 Mbits Character ROM or 2 Mbits SRAM
` SED15X(KSX), MC141X and HD66410 series LCD driver compatible interface option
` 46 bytes message buffer
` One 16-bit timer and one 8-bit timer
` Internal 2Hz or 1Hz RTC or Real Time Clock option
` Single buzzer generator output (BZ) with duty cycle control
` low current HALT mode operation
` 16-bit watchdog timer
` Built-in data filter (16-times over-sampling ) and bit clock recovery
` Advanced synchronization algorithm
` 2-bit random and (optional) 4-bit burst error correction for address and message
` Up to 6 user addresses and 6 user frames, independently programmable
` 3 RF power-on timing control pins and Received data inversion (optional)
` Built in SPI circuit
` Out-of-range condition indicator
` One internal 8-bit D/A converter
` Battery fail and battery low detection
` 80-pin LQFP package



Pinout

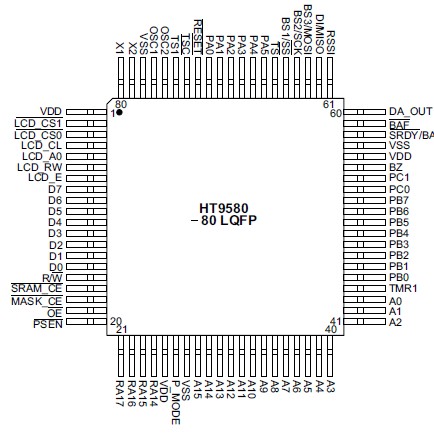

  Connection Diagram


Specifications

Supply Voltage.........................................-0.3V to 3.6V
Input Voltage ............................VSS-0.5V to VDD+0.5V
Storage Temperature.......................... .-55 to 150
Operating Temperature ..........................-30 to 85
Current Drain Per Pin Excluding VDD and VSS .....10mA

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT9580 is a high performance pager controller which can be used for Chinese Pager system applications. The HT9580 4-in-1 Character Pager Controller combines a POCSAG decoder with a M6502 microprocessor core, 2 Mbits Character ROM and 256 Kbits SRAM to provide both high decoder performance and excellent system flexibility. The decoder utilizes a 2-bit random error correction algorithm and therefore provides excellent decoder sensitivity. The controller contains a full function pager decoder at a 512, 1200, 2400 bps data rates. Using an M6502 core takes advantage of a flexible external control interface, LCD driver chips and abundant programming resources from worldwide providers. The internal SPI would communicate with SPI of FLEXTM high speed pager decoder.
