HT95168

Features: · Operating voltage: 2.4V~5.5V· DTMF/FSK dual Caller ID standard· Stores a maximum of 27 incoming calls (date, time, number)· Stores a maximum of 8 outgoing calls (dialing time, number)· RTC Indicator (month-day-hour-minute-second)· Tone/Pulse dialing· 1~99 hours setting for mute functio...

product image

HT95168 Picture
See larger image
SeekIC No. : 004367208 Detail

HT95168: Features: · Operating voltage: 2.4V~5.5V· DTMF/FSK dual Caller ID standard· Stores a maximum of 27 incoming calls (date, time, number)· Stores a maximum of 8 outgoing calls (dialing time, number)· R...

HT95168 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT95168
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 2.4V~5.5V
· DTMF/FSK dual Caller ID standard
· Stores a maximum of 27 incoming calls (date, time, number)
· Stores a maximum of 8 outgoing calls (dialing time, number)
· RTC Indicator (month-day-hour-minute-second)
· Tone/Pulse dialing
· 1~99 hours setting for mute function
· 8-digit area & long distance code screen setting
· Unauthorized-dialing protection
· Four-stage ring sound/speech volume adjustment
· Four-stage LCD brightness adjustment
· Fixed IP number dialing out (defined by hardware option)
· Caller ID records, check/delete/call-back
· Previous edit and immediately dial out
· Hand-free/redial/pause/flash/Add '0' call back/R key functions
· Provides chip and package forms

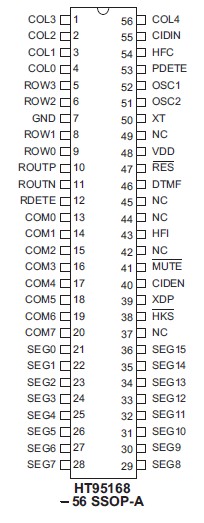

Pinout

Connection Diagram


Description

The HT95168 is a high performance and low cost IC specifically designed for Caller ID telephone applications. The device contains FSK/DTMF receiver, tone/pulse dialer, LCD driver, ringer, real time clock and many more essential features. Besides, it has simple and cost-effective external components which are suitable for high volume production.
