HT6576A

Features: · Support the ANSI X3.131-1986 standard· Asynchronous transfer rate to 5 Mbyte/sec· Support initiator and target mode· 0.8um CMOS process· On chip 48mA single-ended drivers and receivers· Non internal clock needed· 44pins PLCC packagePinoutSpecifications Symbol Parameter Min...

product image

HT6576A Picture
SeekIC No. : 004366911 Detail

HT6576A: Features: · Support the ANSI X3.131-1986 standard· Asynchronous transfer rate to 5 Mbyte/sec· Support initiator and target mode· 0.8um CMOS process· On chip 48mA single-ended drivers and receivers· ...

floor Price/Ceiling Price

Part Number:
HT6576A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/13

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Support the ANSI X3.131-1986 standard
· Asynchronous transfer rate to 5 Mbyte/sec
· Support initiator and target mode
· 0.8um CMOS process
· On chip 48mA single-ended drivers and receivers
· Non internal clock needed
· 44pins PLCC package



Pinout

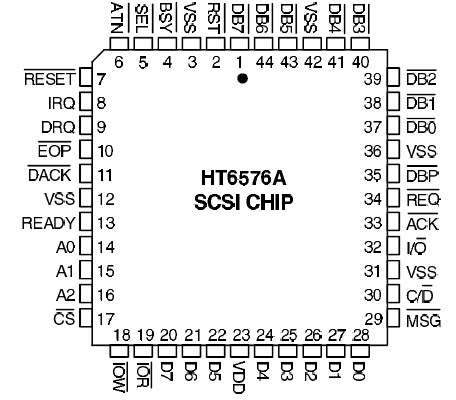

  Connection Diagram


Specifications

Symbol
Parameter
Min.
Max.
Max.
Tstg
Storage Temperature
-55
150
°C
VDD
Supply Voltage
-0.5
7.0
V
VIN
Input Voltage
Vss-0.5
VDD+0.5
V
ESD
Electrostatic Discharge
-5000
5000
V
