HT6513B

Features: · Supports optomechanical mouse· In M+ mode, compatible with Plug and Play· Fit a defined Windows 95 class name in M+ mode· Uses 32.768kHZ crystal· Crystal oscillator circuits on chip· 1200/9600 baud rate serial output· Power directly from RS-232C without external power supply·Three key-...

product image

HT6513B Picture
See larger image
SeekIC No. : 004366904 Detail

HT6513B: Features: · Supports optomechanical mouse· In M+ mode, compatible with Plug and Play· Fit a defined Windows 95 class name in M+ mode· Uses 32.768kHZ crystal· Crystal oscillator circuits on chip· 120...

HT6513B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT6513B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Supports optomechanical mouse
· In M+ mode, compatible with Plug and Play
· Fit a defined Windows 95 class name in M+ mode
· Uses 32.768kHZ crystal
· Crystal oscillator circuits on chip
· 1200/9600 baud rate serial output
· Power directly from RS-232C without external power supply
·Three key-switches and four photo-coupler inputs
· Compatible with both M+ and Mouse systems
· Microsoft system mode with middle key supported
· Mouse mode (M+/PC) changeable during power on reset
· RXD with heavy NMOS open drain output


Pinout

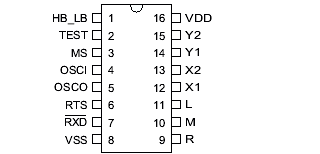

Connection Diagram


Specifications

Supply Voltage..............................-0.3V to 6.5V
Input Voltage .................VSS-0.3V to VDD+0.3V
Storage Temperature....................-50 to 12
Operating Temperature .................-25 to 7

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute MaximumRatings
          " may cause substantial damage to the device. Functional operation of this device at other conditions
          beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may
         affect device reliability.


Description

The HT6513B is specially designed for PnPcompatible mouse controller. Capable of driving up to 3 key-switches and 4 photo-couplers (optomechanical mouse) directly into a standard RS-232C line, and it can be operated without an external power supply. It is compatible with both M+ and Mouse systems with false entries beingpreventedbyinternaldebouncecircuits.
