Features:

· Single-chip with easy interface between UART and serial port connector
· Three drivers and five receivers meet or exceed the requirements of EIA/TIA-232-D
· Designed to support data rates up to 120 Kbit/s
· Driver current-limited output: 25mA typ.
· Flexible supply voltage range
· ESD protection exceeds 5kV
· 20-pin SOP package


Pinout

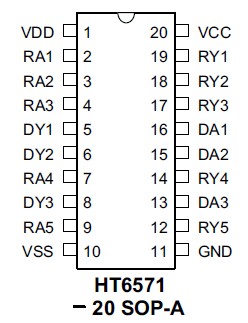

Connection Diagram


Specifications

Supply Voltage (VSS VDD).......................... -15V~15V
Supply Voltage (GND VCC)....................... -0.3V~5.5V
Input Voltage Driver ........................................ 0V~7V
Receiver ....................................................-15V~15V
Output Voltage Driver ................................-15V~15V
Receiver ........................................................ 0V~7V

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT6571 is a CMOS device containing three RS-232 line drivers, and five RS-232 line receivers that are used to interface data terminal equipment (DTE) with data circuit- terminating equipment (DCE).
