Product Details

Description



Features:

· Operating voltage: 2.4V~5.2V
· 32 system codes, each system with 64 command codes
· Programmable transmission codes
· Biphase transmission method
· Generated modulation output data (1/2 system frequency and 1/4 duty cycle)
· Single pin oscillator
· 429kHz resonator system clock
· Test pins available
· 28-pin SOP package




Application

· Televisions and video cassette recorder controllers
· Garage door controllers
· Car door controllers
· Security systems
· Other remote control systems




Pinout

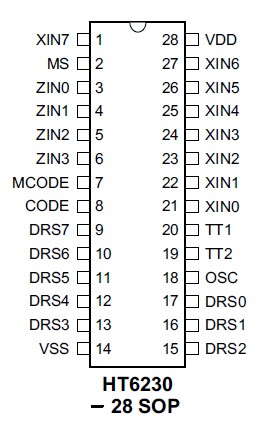

Connection Diagram




Specifications

Supply Voltage..............................-0.3V to 5.5V
Input Voltage .................VSS-0.3V to VDD+0.3V
Storage Temperature.................-50 to 125
Operating Temperature ..............-25 to 75

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.






Description

The HT6230 is designed as infrared remote encoder, usually applied to TV systems. A total of 2048 different commands can be generated and arranged into 32 systems where each system contains 64 different commands. There are 96 keys and to each key is assigned one programmable code. The code is programmable by mask option. Legal and illegal key operation can be distinguished.
