HT6221

Features: ` Operating voltage: 1.8V~3.5V` DOUT with 38kHz carrier for IR medium` Low standby current` Minimum transmission word: one word` 455kHz ceramic resonator or crystal` 16-bit address codes` 8-bit data codes` PPM code method` Three double-active keys` Maximum active keys- HT6221: 32 keys- H...

product image

HT6221 Picture
See larger image
SeekIC No. : 004366897 Detail

HT6221: Features: ` Operating voltage: 1.8V~3.5V` DOUT with 38kHz carrier for IR medium` Low standby current` Minimum transmission word: one word` 455kHz ceramic resonator or crystal` 16-bit address codes` ...

HT6221 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT6221
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage: 1.8V~3.5V
` DOUT with 38kHz carrier for IR medium
` Low standby current
` Minimum transmission word: one word
` 455kHz ceramic resonator or crystal
` 16-bit address codes
` 8-bit data codes
` PPM code method
` Three double-active keys
` Maximum active keys
- HT6221: 32 keys
- HT6222: 64 keys
` Low power and high noise immunity CMOS technology




Application

· Television and video cassette recorder controllers
· Burglar alarm systems
· Smoke and fire alarm systems
· Garage door controllers
· Car door controllers
· Car alarm systems
· Security systems
· Other remote control systems




Pinout

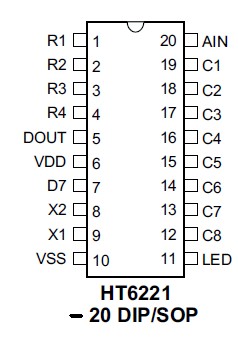

Connection Diagram




Specifications

Supply Voltage................................-0.3V to 6V
Input Voltage ................VSS-0.3V to VDD+0.3V
Storage Temperature................-50 to 125
Operating Temperature ..............-20 to 75

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.






Description

The HT6221/HT6222 are CMOS LSI encoders designed for use in remote control systems. They are capable of encoding 16-bit address codes and 8-bit data codes. Each address/data input can be set to one of the two logic states, 0 and 1.

The HT6221/HT6222 contain 32 keys (K1~K32) and 64 keys (K1~K64), respectively. When one of the keys is triggered, the programmed address/data is transmitted together with the header bits via an IR (38kHz carrier) transmission medium.
