HSP48212

Features: • 12-Bit Pixel Data• Two's Complement or Unsigned Data• 12-Bit Mix Factor• 13-Bit Signed or Unsigned Three State Output• Overflow Detection and Output Saturation• Rounding to 8, 10, 12, or 13-Bits • Input and Output Pixel Data Synchronous to Cloc...

product image

HSP48212 Picture
See larger image
SeekIC No. : 004366444 Detail

HSP48212: Features: • 12-Bit Pixel Data• Two's Complement or Unsigned Data• 12-Bit Mix Factor• 13-Bit Signed or Unsigned Three State Output• Overflow Detection and Output Saturat...

HSP48212 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HSP48212
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 12-Bit Pixel Data
• Two's Complement or Unsigned Data
• 12-Bit Mix Factor
• 13-Bit Signed or Unsigned Three State Output
• Overflow Detection and Output Saturation
• Rounding to 8, 10, 12, or 13-Bits
• Input and Output Pixel Data Synchronous to Clock
• Programmable Pipeline Delay of up to 7 Clock Cycles for Control of Misaligned Input Data
• TTL Compatible Inputs/Outputs
• DC to 40MHz Clock Rate


Application

• Video Summing (Frame Addition)
• Video Mixing
• Fade In/Out
• Video Switching
• High Speed Multiplying


Pinout

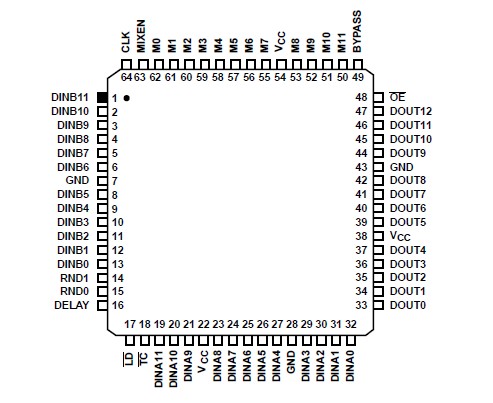

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.0V
Input, Output or I/O Voltage . . . . . . . . . . . GND -0.5V to VCC +0.5V
Storage Temperature Range . . . . . . . . . . . . . . . . . . -65 to 150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . . .300
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1


Description

The Intersil HSP48212 is a 68 pin Digital Video Mixer IC
intended for use in multimedia and medical imaging applications.

The HSP48212 allows the user to mix two video sources based on a programmable weighting factor. After weighting the input data signals, the Video Mixer simply adds the two weighted signals mathematically. This results in the mixed output, which is a weighted sum of the two sources.

The HSP48212 input and output interfaces are synchronous with respect to the input clock, simplifying the user interface requirements.

Input Data (DINA, DINB), Mix Factor (M) and control signals  (RND, TCB) may be delayed relative to each other in order to compensate for any misalignment that may have occurred prior to entering the HSP48212. Each input's delay may be independently programmed up to seven clock cycles.

The output data may be rounded to 8, 10, 12, or 13-bits. The enabling of data onto the output data bus is under the user's control via an output enable signal (OE).
