HSP43881

Features:

• Eight Filter Cells
• 0MHz to 30MHz Sample Rate
• 8-Bit Coefficients and Signal Data
• 26-Bit Accumulator Per Stage
• Filter Lengths Over 1000 Taps
• Expandable Coefficient Size, Data Size and Filter Length
• Decimation by 2, 3 or 4


Application

• 1-D and 2-D FIR Filters
• Radar/Sonar
• Adaptive Filters
• Echo Cancellation
• Complex Multiply-Add
• Sample Rate Converters

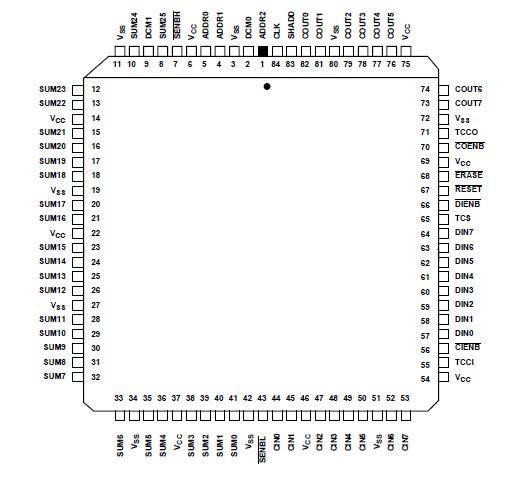

Pinout




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.0V
Input, Output Voltage . . . . . . . . . . . . . . . . . . . GND -0.5 to VCC 0.5V
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1


Description

The HSP43881 is a video speed Digital Filter (DF) designed to efficiently implement vector operations such as FIR digital filters. It is comprised of eight filter cells cascaded internally and a shift and add output stage, all in a single integrated circuit. Each filter cell contains a 8 x 8-bit multiplier, three decimation registers and a 26-bit accumulator. The output stage contains an additional 26-bit accumulator which can add the contents of any filter cell accumulator to the output stage accumulator shifted right by 8 bits. The HSP43881 has a maximum sample rate of 30MHz. The effective multiply accumulate (mac) rate is 240MHz.

The HSP43881 DF can be configured to process expanded coefficient and word sizes. Multiple DFs can be cascaded for larger filter lengths without degrading the sample rate or a single DF can process larger filter lengths at less than 30MHz with multiple passes. The architecture permits processing filter lengths of over 1000 taps with the guaratee of no overflows. In practice, most filter coefficients  are less than 1.0, making even larger filter lengths possible. The DF provides for 8-bit unsigned or two's complement arithmetic, independently selectable for coefficients and signal data.

Each DF filter cell contains three resampling or decimation registers which permit output sample rate reduction at rates of 1/2, 1/3 or 1/4 the input sample rate. HSP43881 also provide the capability to perform 2-D operations such as matrix multiplication and N x N spatial correlations/convolutions for image processing applications.
