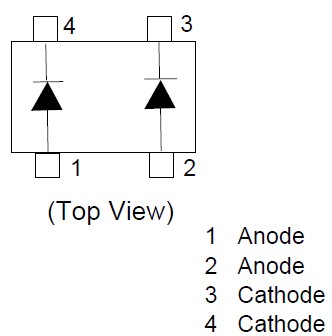

Features: · High reverse voltage. (VR=250V)· CMPAK- 4 package which has two devices parallel connection, is suitable for high density surface mounting.PinoutSpecifications Item Symbol Value Unit Peak reverse voltage VRM 300 V Reverse voltage VR 250 V Peak f...
HSB83YP: Features: · High reverse voltage. (VR=250V)· CMPAK- 4 package which has two devices parallel connection, is suitable for high density surface mounting.PinoutSpecifications Item Symbol Val...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item |
Symbol |
Value |
Unit |
Peak reverse voltage |
VRM |
300 |
V |
Reverse voltage |
VR |
250 |
V |
Peak forward current |
IFM |
300 |
mA |
Non-Repetitive peak forward surge current |
IFM*1 |
2 |
A |
Average rectified current |
IO*1 |
100 |
mA |
Junction temperature |
Tj |
125 |
|
Storage temperature |
Tstg |
-55Å`+125 |
