Product Details

Description

Features:

· On-board single power supply (V_CC): V_CC = 3.3 V ± 0.3 V
· Access time: 80/100/120 ns (max)
· Low power dissipation:
   I_CC = 30 mA (max) (Read)
   I_CC = 200 mA (max) (Standby)
   I_CC = 40 mA (max) (Program)
   I_CC = 40 mA (max) (Erase)
   I_CC = 1 mA (typ) (Deep powerdown)
· Automatic page programming:
   Programming time: 25 ms (typ)
   Program unit: 128 word
· Automatic erase:
   Erase time: 50 ms (typ)
   Erase unit: Boot block; 8-kword/16-kbyte ´ 1
                      Parameter block; 4-kword/8-kbyte ´ 2
                      Main block; 16-kword/32-kbyte ´ 1
                      32-kword/64-kbyte ´ 15

Pinout

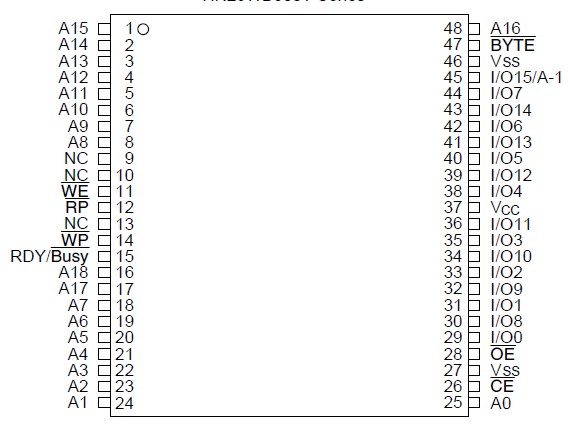

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit	Notes
V_CC voltage	V_CC	0.2 to +4.6	V	1
All input and output voltages except V_CC, A9, RP	V_in, V_out	0.6 to +4.6	V	1, 2
A9, RP supply voltage	V_HH, V_ID	0.6 to +14.0	V	1, 2
Operating temperature range	T_opr	0 to +70	°C
Storage temperature range	T_stg	65 to +125	°C
Storage temperature under bias	T_bias	10 to +80	°C

Description

The Hitachi HN29WT800 Series, HN29WB800 Series are 1-Mword ´ 8-bit/512-kword ´ 16-bit CMOS Flash Memory with DINOR (DIvided bitline NOR) type memory cells, that realize programming and erase capabilities with a single 3.3 V power supply. The built-in Sequence Controller allows Automatic Program/Erase without complex external control. HN29WT800 Series, HN29WB800 Series enable the low power and high performance systems such as mobile, personal computing and communication products.
