HN29V102414T-50H

Features: · On-board single power supply (VCC): VCC = 2.7 V to 3.6 V· Organization· AND Flash Memory: (2048 + 64) bytes × (More than 32,113 sectors) ×2· Data register: (2048 + 64) bytes × 2· Multi-level memory cell· 2 bit/per memory cell· Automatic programming· Sector program time: 1.0 ms (typ)· S...

product image

HN29V102414T-50H Picture
See larger image
SeekIC No. : 004364988 Detail

HN29V102414T-50H: Features: · On-board single power supply (VCC): VCC = 2.7 V to 3.6 V· Organization· AND Flash Memory: (2048 + 64) bytes × (More than 32,113 sectors) ×2· Data register: (2048 + 64) bytes × 2· Multi-l...

HN29V102414T-50H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN29V102414T-50H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  On-board single power supply (VCC): VCC = 2.7 V to 3.6 V
·  Organization
· AND Flash Memory: (2048 + 64) bytes × (More than 32,113 sectors) ×2
· Data register: (2048 + 64) bytes × 2
·  Multi-level memory cell
· 2 bit/per memory cell
·  Automatic programming
· Sector program time: 1.0 ms (typ)
· System bus free
· Address, data latch function
· Internal automatic program verify function
· Status data polling function
·  Automatic erase
· Single sector erase time: 1.0 ms (typ)
· System bus free
· Internal automatic erase verify function
· Status data polling function

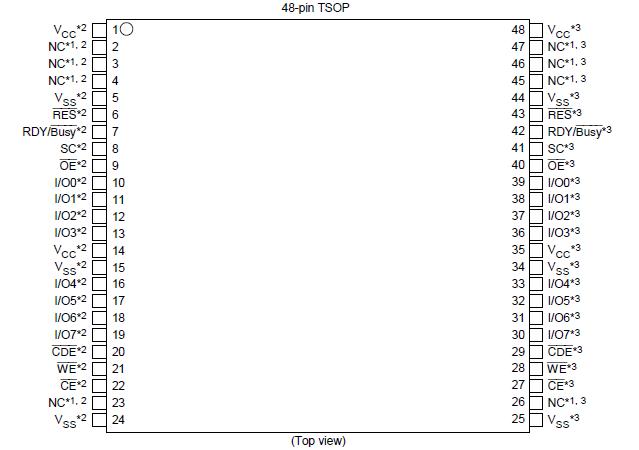

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit Notes
VCC voltage VCC 0.6 to +4.6 V 1
VSS voltage VSS 0 V
All input and output voltages Vin, Vout 0.6 to +4.6 V 1, 2
Operating temperature range Topr 0 to +70
Storage temperature range Tstg 65 to +125 3
Storage temperature under bias Tbias 10 to +80
Notes: 1. Relative to VSS.
2. Vin, Vout = 2.0 V for pulse width 20 ns.
3. Device storage temperature range before programming.


Description

The Hitachi HN29V102414T-50H is a CMOS Flash Memory with AND type multi-level memory cells. It has fully automatic programming and erase capabilities with a single 3.0 V power supply. The functions are controlled by simple external commands. To fit the I/O card applications, the unit of programming and erase is as small as (2048 + 64) bytes. Initial available sectors of HN29V102414T-50H are more than 64,226 (98% of all sector address) and less than 65,536 sectors.
