Product Details

Description



Features:

`  On-board single power supply (VCC): VCC = 3.3 V ± 0.3 V
`  Organization
    --  AND Flash Memory: (2048 + 64) bytes ´ (More than 8,029 sectors)
    --  Data register: (2048 + 64) bytes
`  Multi-level memory cell
    --  2 bit/per memory cell
`  Automatic programming
    --  Sector program time: 2.5 ms (typ)
    --  System bus free
    --  Address, data latch function
    --  Internal automatic program verify function
    --  Status data polling function
`  Automatic erase
    --  Single sector erase time: 1.0 ms (typ)
    --  System bus free
    --  Internal automatic erase verify function
    --  Status data polling function
`  Erase mode
    --  Single sector erase ((2048 + 64) byte unit)
`  Fast serial read access time:
    --  First access time: 50 s (max)
    --  Serial access time: 60 ns (max)
`  Low power dissipation:
    --  ICC2 = 40 mA (max) (Read)
    --  ISB2 = 50 A (max) (Standby)
    --  ICC3/ICC4 = 40 mA (max) (Erase/Program)
    --  ISB3 = 5 A (max) (Deep standby)
`  The following architecture is required for data reliability.
    --  Error correction: more than 1-bit error correction per each sector read
    --  Spare sectors: 1.8% (145 sectors) within usable sectors


Pinout

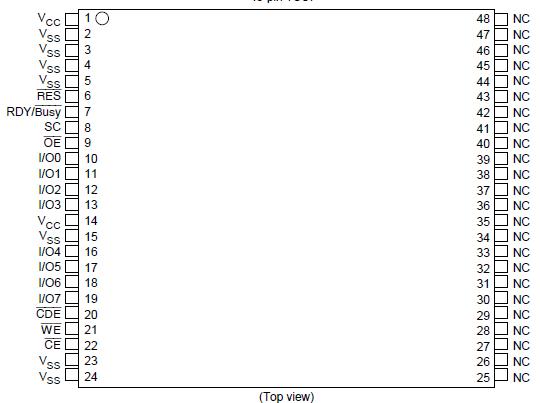

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Notes
VCC voltage
VCC
0.6 to +4.6
V
1
VSS voltage
VSS
0
V
All input and output voltages
Vin, Vout
0.6 to VCC + 0.3
V
1,2
Operating temperature range
Topr
0 to +70
Storage temperature range
Tstg
65 to +125
3
Storage temperature under bias
Tbias
10 to +80



Description

The Hitachi HN29W12811 Series is a CMOS Flash Memory with AND type multi-level memory cells. It has fully automatic programming and erase capabilities with a single 3.3 V power supply. The functions are controlled by simple external commands. To fit the I/O card applications, the unit of programming and erase is as small as (2048 + 64) bytes. Initial available sectors of HN29W12811 are more than 8,029 (98% of all sector address).
