HN27C4001TT

Features: ` High speed: - Access time: 120 ns/150 ns (max)` Low power dissipation: - Standby mode: 5 W (typ) - Active mode: 35 mW/MHz (typ)` Fast high-reliability page programming and fast high-reliability programming: - Program voltage: +12.5 V DC - Program time: 3.5 sec (min) (Theoretical in pag...

product image

HN27C4001TT Picture
See larger image
SeekIC No. : 004364974 Detail

HN27C4001TT: Features: ` High speed: - Access time: 120 ns/150 ns (max)` Low power dissipation: - Standby mode: 5 W (typ) - Active mode: 35 mW/MHz (typ)` Fast high-reliability page programming and fast high-reli...

HN27C4001TT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN27C4001TT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  High speed:
     - Access time: 120 ns/150 ns (max)
`  Low power dissipation:
     - Standby mode: 5 W (typ)
     - Active mode: 35 mW/MHz (typ)
`  Fast high-reliability page programming and fast high-reliability programming:
     - Program voltage: +12.5 V DC
     - Program time: 3.5 sec (min) (Theoretical in page programming)
`  Inputs and outputs TTL compatible during both read and program modes
`  Pin arrangement: 32-pin JEDEC standard (TTP-32D)
`  Package
     - Surface mount thin and small outline package (TSOP) type II: HN27C4001TT series
`  Device identifier mode: Manufacturer code and device code


Pinout

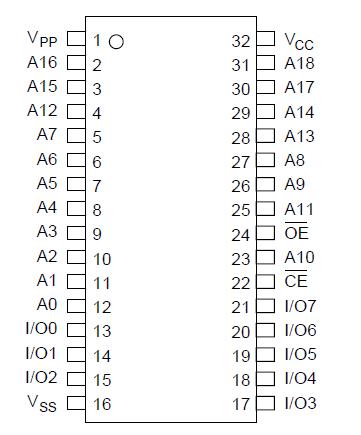

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
All input and output voltages*1
Vin, Vout
0.6*2 to +7.0
V
A9, OE input voltage*1
VID
0.6*2 to + 13.0
V
VPP voltage*1
VPP
0.6 to +13.5
V
VCC voltage*1
VCC
0.6 to + 7.0
V
Operating temperature range
Topr
0 to +70
°C
Storage temperature range*3
Tstg
55 to +125
°C
Storage temperature range under bias
Tbias
20 to +80
°C
Notes:
1. Relative to VSS
2. Vin, Vout and VID min = 2.0 V for pulse width 20 ns
3. Storage temperature range of device before programming.


Description

The Hitachi HN27C4001TT is a 512-kword ×8-bit one time electrically programmable ROM, featuring high speed and low power dissipation. Fabricated on advanced fine process and high speed circuitry technique, it makes high speed access time possible. Therefore, it is suitable for high speed microcomputer systems. The HN27C4001TT offers high speed programming using page programming mode. This device is packaged in 32-pin plastic package, therefore, this device cannot be rewritten and erased. The packages of it are surface mount thin and small outline packages. They are suitable for hand-held equipment such as a memory card.
