HN27C101AG

Features: ` Single power supply: +5 V ± 5% (HN27C101AG-10/HN27C301AG-10) +5 V ± 10% (HN27C101AG/HN27C301AG-12/15/17/20/ 25)` Fast high-reliability programming mode and fast high-reliability page programming mode - Programming voltage: +12.5 V DC - Fast high-reliability page programming: 14 sec typ...

product image

HN27C101AG Picture
See larger image
SeekIC No. : 004364953 Detail

HN27C101AG: Features: ` Single power supply: +5 V ± 5% (HN27C101AG-10/HN27C301AG-10) +5 V ± 10% (HN27C101AG/HN27C301AG-12/15/17/20/ 25)` Fast high-reliability programming mode and fast high-reliability page pro...

HN27C101AG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN27C101AG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single power supply:
     +5 V ± 5% (HN27C101AG-10/HN27C301AG-10)
     +5 V ± 10% (HN27C101AG/HN27C301AG-12/15/17/20/ 25)
`  Fast high-reliability programming mode and fast high-reliability page programming mode
     - Programming voltage: +12.5 V DC
     - Fast high-reliability page programming: 14 sec typ
`  High speed inputs and outputs TTL compatible during both read and program modes
`  Low power dissipation: 50 mW/MHz typ (active)
     5 mW typ (standby)
`  Pin arrangement: 32-pin JEDEC standard (HN27C101AG)
: replaceable 32 pin MASK ROM (HN27C301AG)
`  Device identifier mode: manufacturer code and device code
`  Fully compatible with HN27C101G/ HN27C301G series


Pinout

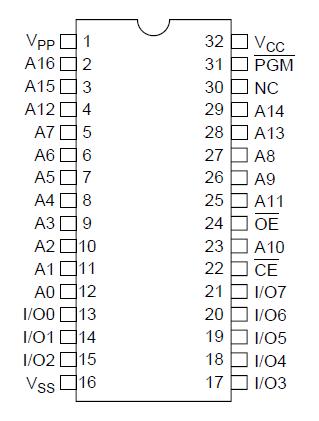

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
All input and output voltages*1
Vin, Vout
0.6*2 to +7.0
V
A9 input voltage*1
VID
0.6*2 to +13.5
V
VPP voltage*1
VPP
0.6 to +13.5
V
VCC voltage*1
VCC
0.6 to +7.0
V
Operating temperature range
Topr
0 to +70
°C
Storage temperature range
Tstg
65 to +125
°C
Storage temperature range under bias
Tbias
10 to +80
°C
Notes: 1. Relative to VSS
2. Vin, Vout and VID min = 1.0 V for pulse width  50 ns


Description

The Hitachi HN27C101AG/HN27C301AG is a 1-Mbit ultraviolet erasable and electrically programmable ROM. This device is packaged in a 32-pin dual-in-line package with transparent lid. The transparent lid allows the memory content to be erased with ultraviolet light, whereby a new pattern can then be written into the device.
