HN27C4001G

Features: ` High speed Access time: 100 ns/120 ns/150 ns (max)` Low power dissipation Standby mode: 5 W(typ) Active mode: 35 mW/MHz (typ)` Fast high reliability page programming and fast high-reliability programming Programming voltage: +12.5 V D.C. Program time: 3.5 sec (min) (Theoretical in page...

product image

HN27C4001G Picture
See larger image
SeekIC No. : 004364973 Detail

HN27C4001G: Features: ` High speed Access time: 100 ns/120 ns/150 ns (max)` Low power dissipation Standby mode: 5 W(typ) Active mode: 35 mW/MHz (typ)` Fast high reliability page programming and fast high-reliab...

HN27C4001G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN27C4001G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  High speed
     Access time: 100 ns/120 ns/150 ns (max)
`  Low power dissipation
     Standby mode: 5 W(typ)
     Active mode: 35 mW/MHz (typ)
`  Fast high reliability page programming and fast high-reliability programming
     Programming voltage: +12.5 V D.C.
     Program time: 3.5 sec (min) (Theoretical in page programming)
`  Inputs and outputs TTL compatible during both read and program modes
`  Pin arrangement
     32-pin JEDEC standard
`  Device identifier mode
     Manufacturer code and device code

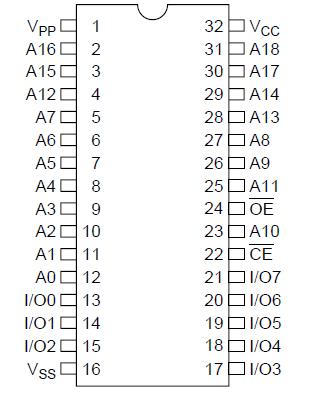

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Notes
All input and output voltages
Vin, Vout
0.6*2 to +7.0
V
1, 2
Voltage on pin A9 and OE
VID
0.6*2 to + 13.0
V
2
VPP voltage
VPP
0.6 to +13.5
V
1
VCC voltage
VCC
0.6 to + 7.0
V
1
Operating temperature range
Topr
0 to +70
°C
Storage temperature range
Tstg
55 to +125
°C
3
Storage temperature range under bias
Tbias
20 to +80
°C

Notes:
1. Relative to VSS
2. Vin, Vout and VID min = 2.0 V for pulse width 20 ns
3. Storage temperature range of device before programming.


Description

The Hitachi HN27C4001G is a 4-Mbit ultraviolet erasable and electrically programmable ROM, featuring high speed and low power dissipation. Fabricated on advanced fine process and high speed circuitry technique, it makes high speed access time possible. Therefore, it is suitable for high speed
microcomputer systems. The HN27C4001G offers high speed programming using page programming mode.
