HN27C4000FP

Features: ` Organization: 524288-word * 8-bit/262144-word *16-bit (BYTE/VPP enables selection byte-wide or wordwide)` High speed: Access time 120 ns/150 ns (max) Burst access time 60 ns/60 ns (max)` Low power dissipation: Standby mode; 5 W (typ) Active mode; 150 mW/MHz (typ)` Fast high reliability...

product image

HN27C4000FP Picture
See larger image
SeekIC No. : 004364971 Detail

HN27C4000FP: Features: ` Organization: 524288-word * 8-bit/262144-word *16-bit (BYTE/VPP enables selection byte-wide or wordwide)` High speed: Access time 120 ns/150 ns (max) Burst access time 60 ns/60 ns (max)`...

HN27C4000FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN27C4000FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Organization: 524288-word * 8-bit/262144-word *16-bit (BYTE/VPP enables selection byte-wide or wordwide)
`  High speed:
     Access time 120 ns/150 ns (max)
     Burst access time 60 ns/60 ns (max)
`  Low power dissipation:
     Standby mode; 5 W (typ)
     Active mode; 150 mW/MHz (typ)
`  Fast high reliability page programming, fast high-reliability programming and option programming:
     Program voltage; +12.5 V DC
     Program time; 3.5 sec (min) (Theoretical in Page programming)
`  Inputs and outputs TTL compatible during both read and program modes
`  Pin arrangement: 40-pin EIAJ standard pin compatible with HN62414FA/ HN62434FA
`  Device identifier mode: Manufacturer code and device code


Pinout

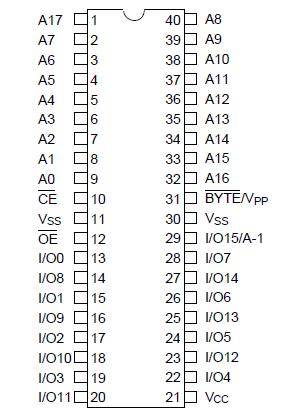

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Notes
All input and output voltages
Vin, Vout
0.6*2 to +7.0
V
1, 2
Voltage on pin A9 and OE
VID
0.6*2 to + 13.0
V
2
VPP voltage
VPP
0.6 to +13.5
V
1
VCC voltage
VCC
0.6 to + 7.0
V
1
Operating temperature range
Topr
0 to +70
°C
Storage temperature range
Tstg
55 to +125
°C
3
Storage temperature range under bias
Tbias
20 to +80
°C

Notes:
1. Relative to VSS
2. Vin, Vout and VID min = 2.0 V for pulse width 20 ns
3. Storage temperature range of device before programming.


Description

The Hitachi HN27C4000FP is a 4-Mbit one time programmable ROM that is organized either as 524288- word ´ 8-bit or as 262144-word×16-bit, featuring extra-high speed burst mode that gives two times faster 4- word or 8-byte serial access than normal. And also high speed and fast programming are served as well as the existing Hitachi 4M device HN27C4096 and HN27C4001. Fabricated on advanced fine process and high speed circuitry technique, HN27C4000FP makes high speed access time and low power dissipation in either active or stand-by mode. Therefore, it is suitable for all systems featuring high speed microprocessor such as the 80386, 80486, 68030, 68040 and so on.
