HN27C301AP

Features: ` Single power supply: +5 V ± 10%` Fast high-reliability programming mode and fast high-reliability page programming mode - Programming voltage: +12.5 V DC - Fast high-reliability page programming: 14 sec typ` High speed inputs and outputs TTL compatible during both read and program mode...

product image

HN27C301AP Picture
See larger image
SeekIC No. : 004364969 Detail

HN27C301AP: Features: ` Single power supply: +5 V ± 10%` Fast high-reliability programming mode and fast high-reliability page programming mode - Programming voltage: +12.5 V DC - Fast high-reliability page pro...

HN27C301AP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN27C301AP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single power supply: +5 V ± 10%
`  Fast high-reliability programming mode and fast high-reliability page programming mode
     - Programming voltage: +12.5 V DC
     - Fast high-reliability page programming: 14 sec typ
`  High speed inputs and outputs TTL compatible during both read and program modes
`  Low power dissipation: 50 mW/MHz typ (active)
     5 W typ (standby)
`  Pin arrangement: 32-pin JEDEC standard except HN27C301A series replaceable 32 pin Mask ROM
     (HN27C301AP/AFP Series)
`  Package
     - Surface mount thin and small outline package (TSOP) type II: HN27C101ATT series
`  Device identifier mode: manufacturer code and device code
`  Fully compatible with HN27C101P/FP, 301P/FP series


Pinout

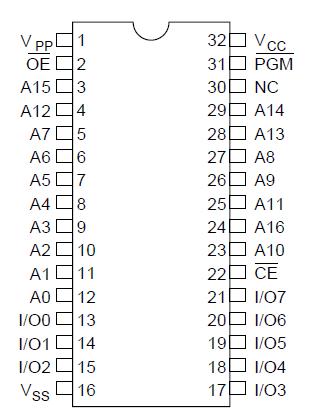

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
All input and output voltages*1
Vin, Vout
0.6*2 to +7.0
V
A9 input voltage*1
VID
0.6*2 to + 7.0
V
VPP voltage*1
VPP
0.6 to +13.5
V
VCC voltage*1
VCC
0.6 to +13.5
V
Operating temperature range
Topr
0 to +70
°C
Storage temperature range
Tstg
55 to +125
°C
Storage temperature range under bias
Tbias
10 to +80
°C
Notes:
1. Relative to VSS
2. Vin, Vout and VID min = 1.0 V for pulse width 50 ns


Description

The HN27C101AP/AFP/ATT series are 131072-word×8-bit one time electrically programmable ROM. Initially, all bits of the HN27C101AP/AFP/ATT, HN27C301AP /AFP series are in the "1" state (output high). Data is introduced by selectively programming "0" into the desired bit location. This device is packaged in 32-pin plastic package, therefore, this device cannot be rewritten and erased. The packages of the HN27C101ATT series are surface mount thin and small outline packages. HN27C301AP are suitable for hand-held equipment such as a memory card.
