Product Details

Description



Features:

·  Fast high-reliability programming mode and fast high-reliability page programming mode
     Programming voltage: 12.5 V DC
     Fast High-reliability page programming 14 sec (typ)
·  High speed inputs and outputs TTL compatible during both read and program modes
·  Low power dissipation: 60 mW/MHz (typ)
·  Device identifier mode: Manufacturer code and device code
·  JEDEC standard

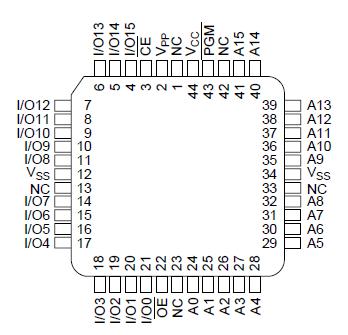

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
All input and output voltages*1
Vin, Vout
0.6*2 to +7.0
V
A9 input voltage*1
VID
0.6*2 to + 13.5
V
VPP voltage*1
VPP
0.6 to +13.O
V
VCC voltage*1
VCC
0.6 to + 7.0
V
Operating temperature range
Topr
0 to +70
°C
Storage temperature range
Tstg
55 to +125
°C
Storage temperature range under bias
Tbias
10 to +80
°C
Notes: 1. Relative to VSS
2. Vin, Vout and VID min = 1.0 V for pulse width 50 ns


Description

The Hitachi HN27C1024HCC series is a 1-Mbit (64-kword×16-bit) ultraviolet erasable and electrically programmable ROM. Fabricated on new advanced fine process technique, the HN27C1024H makes high speed access time 85/100 ns (max) possible. (HN27C1024H is the fastest 1-Mbit EPROM.) Therefore, it is suitable for 16-bit microcomputer systems using high speed microcomputer such as the 8086 and 68000. The HN27C1024HCC offers high speed programming using page programming mode. It has the package variation of cerdip 40-pin and JLCC 44-pin.
