HMC393MS8G

Features: Low Insertion Loss: 1.2 dB @ 5.5 GHzHigh IP3: 49 dBmPositive Control: 0/+5VUltra Small MSOP8G Package: 14.8 mm2ApplicationThis switch is ideal for use as a DPDT DiversitySwitch for 5.0 - 6.0 GHz applications:• HiperLAN• UNIIPinoutSpecifications RF...

product image

HMC393MS8G Picture
See larger image
SeekIC No. : 004363985 Detail

HMC393MS8G: Features: Low Insertion Loss: 1.2 dB @ 5.5 GHzHigh IP3: 49 dBmPositive Control: 0/+5VUltra Small MSOP8G Package: 14.8 mm2ApplicationThis switch is ideal for use as a DPDT DiversitySwitch for 5.0 - 6...

HMC393MS8G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC393MS8G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Insertion Loss: 1.2 dB @ 5.5 GHz
High IP3: 49 dBm
Positive Control: 0/+5V
Ultra Small MSOP8G Package: 14.8 mm2


Application

This switch is ideal for use as a DPDT Diversity
Switch for 5.0 - 6.0 GHz applications:
• HiperLAN
• UNII

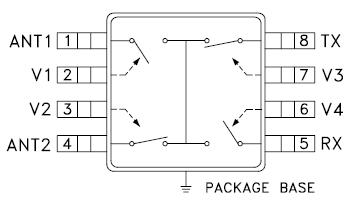

Pinout

Connection Diagram


Specifications

RF Input Power Vctl= 0/+5V +33 dBm
Control Voltage Range (V1, V2, V3, V4) -0.5 to +7.5 Vdc
Storage Temperature -65 to +150
Operating Temperature -40 to +85



Description

The HMC393MS8G is a low cost C-band DPDT switch that operates between 5.0 and 6.0 GHz. This switch can operate as an integrated antenna diversity and transmit/receive switch for the HyperLAN and UNII radio platforms. The design provides 20 dB of isolation between antennas and between Tx and Rx ports. The HMC393MS8G switch features 1.2 dB insertion loss and high power handling capability. Switch state is controlled using four CMOS level control voltage lines.
