HMC304MS8

Features: High Dynamic Range: +30 dBm IIP3No External Components or Bias RequiredLO/RF Isolation: 30 dBUltra Small MSOP8 Package: 14.8 mm2ApplicationThe HMC304MS8 is ideal for:• PCS & 3G• 2.4 GHz ISM• MMDSPinoutSpecifications RF / IF Input +2...

product image

HMC304MS8 Picture
See larger image
SeekIC No. : 004363839 Detail

HMC304MS8: Features: High Dynamic Range: +30 dBm IIP3No External Components or Bias RequiredLO/RF Isolation: 30 dBUltra Small MSOP8 Package: 14.8 mm2ApplicationThe HMC304MS8 is ideal for:• PCS & 3G&#...

HMC304MS8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC304MS8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High Dynamic Range: +30 dBm IIP3
No External Components or Bias Required
LO/RF Isolation: 30 dB
Ultra Small MSOP8 Package: 14.8 mm2


Application

The HMC304MS8 is ideal for:
• PCS & 3G
• 2.4 GHz ISM
• MMDS


Pinout

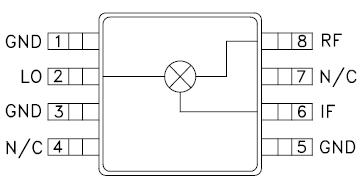

Connection Diagram


Specifications

RF / IF Input +22 dBm
LO Drive +27 dBm
DC Current into IF Port ±9 mA
Storage Temperature -65 to +150
Operating Temperature -40 to +85



Description

The HMC304MS8 is a passive IP3 mixer in an 8 lead plastic surface mount Mini Small Outline Package (MSOP). This miniature single balanced MMIC mixer is constructed of GaAs Schottky diodes and novel planar transformer baluns on the chip while not requiring any external components. The RF port is balanced via the MMIC balun while the LO port is connected directly to the diodes. LO isolations are typically 20 to 30 dB. Excellent input IP3 performance of +27 to +32 dBm makes the HMC304MS8 ideal for high dynamic range applications.
