HMC364S8G

Features:

·Ultra Low SSB Phase Noise: -145 dBc/Hz
·Wide Bandwidth
·Output Power: 4 dBm
·Single DC Supply: +5V
·S8G SMT Package


Application

Prescaler for DC to X Band PLL Applications:
• Satellite Communication Systems
• Fiber Optic
• Pt-Pt and Pt-MPt Radios
• VSAT

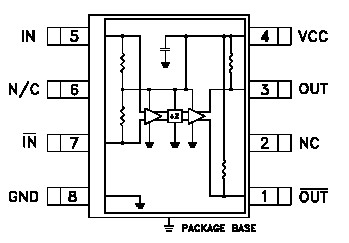

Pinout




Specifications

RF Input (Vcc= +5V)	+13dBm
Vcc	+5.5V
VLogic	Vcc -1.6V to Vcc -1.2V
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85

Description

The HMC364S8G is a low noise Divide-by-2 Static Divider with InGaP GaAs HBT technology in an 8 lead surface mount plastic package. This HMC364S8G operates from DC (with a square wave input) to 12.5 GHz input frequency with a single +5.0V DC supply. The low additive SSB phase noise of -145 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance.
