Product Details

Description

Features:

Wide Bandwidth: DC - 8 GHz
Low Phase Shift vs. Attenuation
32 dB Attenuation Range

Application

This attenuator is ideal for use as a VVA for DC - 8 GHz applications:
• Point-to-Point Radio
• VSAT Radio

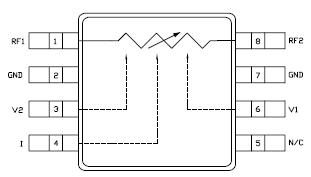

Pinout

Connection Diagram

Specifications

RF Input Power		+18 dBm
Control Voltage Range		+1.0 to -5.0 Vdc
Storage Temperature		-65 to +150 °C
Operating Temperature		-40 to +85 °C

Description

The HMC346MS8G is an absorptive Voltage Variable Attenuator (VVA) in an 8 lead surface-mount package operating from DC - 8 GHz. HMC346MS8G features an on-chip reference attenuator for use with an external op-amp to provide simple single voltage attenuation control, 0 to -3V. The device is ideal in designs where an analog DC control signal must control RF signal levels over a 30 dB amplitude range. Applications include AGC circuits and temperature compensation of multiple gain stages in microwave point-to-point and VSAT radios.
