Product Details

Description

Features:

Wide Bandwidth: DC - 8 GHz
Low Phase Shift vs. Attenuation
30 dB Attenuation Range
Surface Mount Ceramic Package

Application

The HMC346C8 is ideal for:
• Basestation Infrastructure
• Fiber Optics & Broadband Telecom
• Microwave Radio & VSAT
• Military Radios, Radar, & ECM
• Test Instrumentation

Pinout

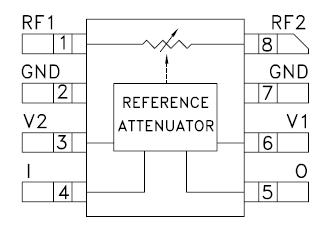

Connection Diagram

Specifications

RF Input Power		+18 dBm
Control Voltage Range		+1.0 to -5.0 Vdc
Channel Temperature		150°C
Thermal Resistance		190 °C/W
Storage Temperature		-65 to +150 °C
Operating Temperature		-40 to +85 °C

Description

The HMC346C8 is an absorptive Voltage Variable Attenuator (VVA) in a non-hermetic surface-mount ceramic package operating from DC - 8 GHz. It features an on-chip reference attenuator for use with an external op-amp to provide simple single voltage attenuation control, 0 to -3V. The device is ideal in designs where an analog DC control signal must control RF signal levels over a 30 dB amplitude range. Applications of HMC346C8 include AGC circuits and temperature compensation of multiple gain stages in microwave radios and test instrumentation.
