HMC345LP3

Features: Broadband Performance: DC - 8.0 GHzHigh Isolation: 35 dB@ 6 GHzLow Insertion Loss: 2.2 dB@ 6 GHzIntegrated Positive Supply 2:4 TTL Decoder3 mm x 3 mm x 1 mm SMT PackageApplicationThis switch is suitable for usage in DC - 8.0 GHz 50-Ohm or 75-Ohm systems:• Broadband• Fiber Opt...

product image

HMC345LP3 Picture
See larger image
SeekIC No. : 004363898 Detail

HMC345LP3: Features: Broadband Performance: DC - 8.0 GHzHigh Isolation: 35 dB@ 6 GHzLow Insertion Loss: 2.2 dB@ 6 GHzIntegrated Positive Supply 2:4 TTL Decoder3 mm x 3 mm x 1 mm SMT PackageApplicationThis swit...

HMC345LP3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC345LP3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Broadband Performance: DC - 8.0 GHz
High Isolation: 35 dB@ 6 GHz
Low Insertion Loss: 2.2 dB@ 6 GHz
Integrated Positive Supply 2:4 TTL Decoder
3 mm x 3 mm x 1 mm SMT Package


Application

This switch is suitable for usage in DC - 8.0 GHz 50-Ohm or 75-Ohm systems:
• Broadband
• Fiber Optics
• Switched Filter Banks
• Wireless below 8 GHz


Pinout

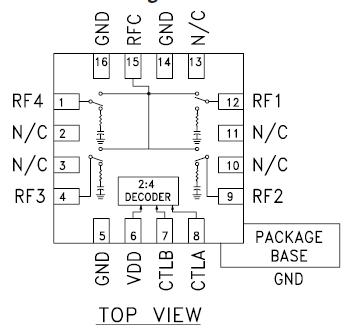

Connection Diagram


Specifications

Bias Voltage Range (Port Vdd) +7.0 Vdc
Control Voltage Range (A & B) -0.5V to Vdd +1.0 Vdc
Channel Temperature 150 °C
Thermal Resistance
(Insertion Loss Path)		 143 °C/W
Thermal Resistance
(Terminated Path)		 1030 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C
Maximum Input Power +24 dBm



Description

The HMC345LP3 is a broadband non-refl ective GaAs MESFET SP4T switch in a low cost leadless surface mount package. Covering DC to 8 GHz, this switch offers high isolation and low insertion loss. This switch also includes an on board binary decoder circuit which reduces the required logic control lines to two. The HMC345LP3 switch operates using a positive control voltage of 0/+5V, and requires a fi xed bias of +5V.
