Product Details

Description

Features:

Integrated LO Amplifi er w/ Pdiss: < 20 mW
Conversion Loss / Noise Figure: 8.0 dB
Low LO Drive Level: 0 dBm
Input IP3: +10 dBm
Single Positive Supply: 3V to 5V

Application

The HMC332 is ideal for:
• MMDS
• PCMCIA
• WirelessLAN
• WCDMA micro-BTS

Pinout

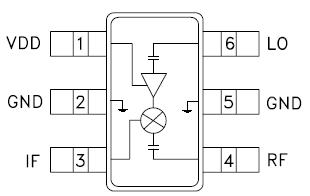

Connection Diagram

Specifications

RF / IF Input (Vdd = +3V)		+13 dBm
LO Drive (Vdd = +3V)		+13 dBm
Vdd		5.5 V
Continuous Pdiss (T = 85°C) (Derate 2.64 mW/°C above 85 C)		238 mW
IF DC Current		±3 mA
Storage Temperature		-65 to +150 °C
Operating Temperature		-40 to +85 °C

Description

The HMC332 is a single balanced mixer IC with an integrated LO amplifi er. This converter IC can operate as an upconverter or downconverter between 2.0 GHz and 2.8 GHz. With the integrated LO amplifi er, the mixer requires an LO drive level of only 0 dBm, and requires only 6 mA from a single positive +3V rail. The HMC332 mixer has 8 dB of conversion loss, an input P1dB of 0 dBm, and an input third order intercept point of +10 dBm.
