HM62W8512A

Features: ` Single 3.3 V supply` Access time: 70/85 ns (max)` Power dissipation - Active: 36 mW/MHz (max) - Standby: 4 W (typ)` Completely static memory. No clock or timing strobe required` Equal access and cycle times` Common data input and output: Three state output` Directly LV-TTL compatible: ...

product image

HM62W8512A Picture
See larger image
SeekIC No. : 004363575 Detail

HM62W8512A: Features: ` Single 3.3 V supply` Access time: 70/85 ns (max)` Power dissipation - Active: 36 mW/MHz (max) - Standby: 4 W (typ)` Completely static memory. No clock or timing strobe required` Equal ac...

HM62W8512A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM62W8512A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single 3.3 V supply
`  Access time: 70/85 ns (max)
`  Power dissipation
     - Active: 36 mW/MHz (max)
     - Standby: 4 W (typ)
`  Completely static memory. No clock or timing strobe required
`  Equal access and cycle times
`  Common data input and output: Three state output
`  Directly LV-TTL compatible: All inputs and outputs
`  Battery backup operation

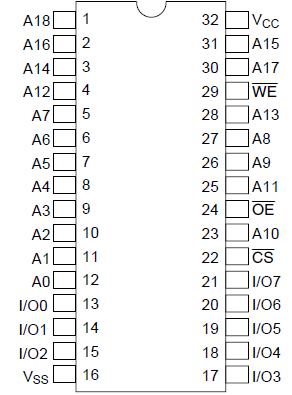

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Power supply voltage
VCC
0.5 to +4.6
V
Terminal voltage*1
VT
0.5*1 to VCC + 0.5*2
V
Power dissipation
PT
1.0
W
Operating temperatue range
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Storage temperature under bias
Tbias
10 to + 85
°C

Notes:
1.3.0 V for pulse half-width 30 ns
2. Maximum voltage is 4.6 V


Description

The Hitachi HM62W8512A is a 4-Mbit static RAM organized 512-kword ×8-bit. It realizes higher density, higher performance and low power consumption by employing 0.5 mm Hi-CMOS process technology. The device, packaged in a 525-mil SOP (foot print pitch width) or 400-mil TSOP TYPE II is available for high density mounting. The HM62W8512A is suitable for battery backup system.
