HM62W8128

Features: ` High speed - Fast access time: 100/120 ns (max)` Low power - Active: 23 mW (typ) - Standby: 4 W (typ)` Single 3.3 V supply` Completely static memory No clock or timing strobe required` Equal access and cycle times` Common data input and output Three state output` All inputs and outputs...

product image

HM62W8128 Picture
See larger image
SeekIC No. : 004363570 Detail

HM62W8128: Features: ` High speed - Fast access time: 100/120 ns (max)` Low power - Active: 23 mW (typ) - Standby: 4 W (typ)` Single 3.3 V supply` Completely static memory No clock or timing strobe required` E...

HM62W8128 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM62W8128
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  High speed
     - Fast access time: 100/120 ns (max)
`  Low power
     - Active: 23 mW (typ)
     - Standby: 4 W (typ)
`  Single 3.3 V supply
`  Completely static memory
     No clock or timing strobe required
`  Equal access and cycle times
`  Common data input and output
     Three state output
`  All inputs and outputs CMOS compatible.
`  Capability of battery backup operation
     2 chip selection for battery backup

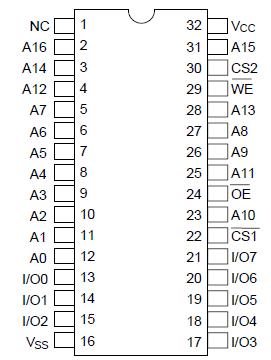

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage relative to VSS
VCC
0.5 to +5.5
V
Voltage on any pin relative to VSS*1
VT
0.5*2 to VCC + 0.3*3
V
Power dissipation
PT
1.0
W
Operating temperatue range
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Storage temperature under bias
Tbias
10 to + 85
°C

Notes:
1. With respect to VSS
2. 1.2 V for pulse half-width 30 ns
3. Maximum voltage is 5.5 V


Description

The Hitachi HM62W8128 is a CMOS static RAM organized 131,072-word ×8-bit. It realizes higher density, higher performance and low power consumption by employing 0.8 mm Hi-CMOS process technology. HM62W8128 offers low power standby power dissipation; therefore, it is suitable for battery backup systems. The device, packaged in a 525-mil SOP (460-mil body SOP) or a 8×20 mm TSOP with thickness of 1.2 mm, is available for high density mounting. TSOP package is suitable for cards, and reverse type TSOP is also provided.
