HM62W4100HC

Features:

`  Single supply : 3.3 V ± 0.3 V
`  Access time : 10 ns (max)
`  Completely static memory
       - No clock or timing strobe required
`  Equal access and cycle times
`  Directly TTL compatible
       - All inputs and outputs
`  Operating current : 115 mA (max)
`  TTL standby current : 40 mA (max)
`  CMOS standby current : 5 mA (max)
                                         : 1 mA (max) (L-version)
`  Data retension current : 0.6 mA (max) (L-version)
`  Data retension voltage: 2 V (min) (L-version)
`  Center V_CC and V_SS type pinout

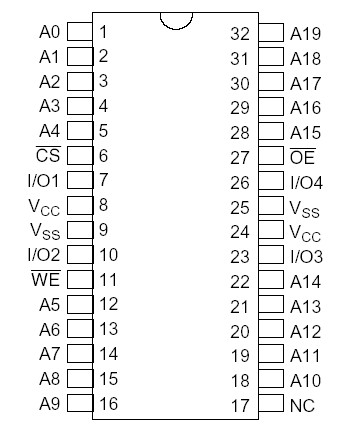

Pinout




Specifications

Parameter	Symbol	Value	Unit
Supply voltage relative to VSS	VCC	0.5 to +4.6	V
Voltage on any pin relative to VSS	VT	0.5*1 to VCC+0.5*2	V
Power dissipation	PT	1.0	W
Operating temperature	Topr	0 to +70
Storage temperature	Tstg	55 to +125
Storage temperature under bias	Tbias	10 to +85

Description

The HM62W4100HC is a 4-Mbit high speed static RAM organized 1-Mword ´ 4-bit. It has realized high speed access time by employing CMOS process (6-transistor memory cell) and high speed circuit designing technology. It is most appropriate for the application which requires high speed and high density memory, such as cache and buffer memory in system. The HM62W4100HC is packaged in 400-mil 32-pin SOJ for high density surface mounting.
