HM62W256

Features: ` Low voltage operation SRAM Operating Supply Voltage: 3.0 V to 3.6 V` 0.8 mm Hi-CMOS process` High speed Access time: 55/70/85 ns (max)` Low power Standby: 0.33 W (typ)` Completely static memory No clock or timing strobe required` Directly LVTTL compatible: All inputs and outputsPinoutS...

product image

HM62W256 Picture
See larger image
SeekIC No. : 004363564 Detail

HM62W256: Features: ` Low voltage operation SRAM Operating Supply Voltage: 3.0 V to 3.6 V` 0.8 mm Hi-CMOS process` High speed Access time: 55/70/85 ns (max)` Low power Standby: 0.33 W (typ)` Completely static...

HM62W256 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM62W256
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Low voltage operation SRAM
     Operating Supply Voltage: 3.0 V to 3.6 V
`  0.8 mm Hi-CMOS process
`  High speed
     Access time: 55/70/85 ns (max)
`  Low power
     Standby: 0.33 W (typ)
`  Completely static memory
     No clock or timing strobe required
`  Directly LVTTL compatible: All inputs and outputs

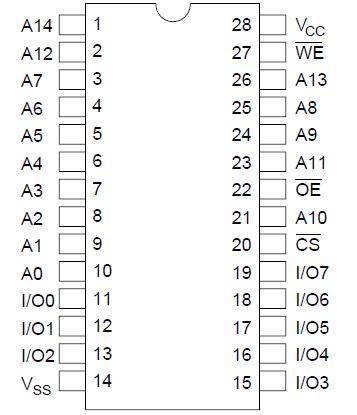

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Power supply voltage*1
VCC
0.5 to + 4.6
V
Terminal voltage*1
VT
0.5*2 to VCC + 0.5*3
V
Power dissipation
PT
1.0
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Storage temperature under bias
Tbias
10 to + 85
°C
Notes:
1. Relative to VSS
2. VT min: 3.0 V for pulse half-width 50 ns
3. Maximum voltage is 4.6 V
