Product Details

Description



Features:

`  Low voltage operation SRAM
     Single 2.7 V to 3.6 V supply
`  High speed
     - Fast access time: 85 ns (max)
`  Low power
     - Standby: 0.3 W (typ)
`  Completely static memory
     No clock or timing strobe required
`  Equal access and cycle times
`  Common data input and output
     Three state output
`  Directly LVTTL compatible
     All inputs and outputs
`  Capability of battery backup operation
     2 chip selection for battery backup


Pinout

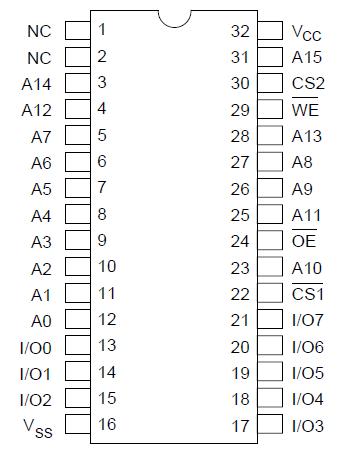

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Power supply voltage*1
VCC
0.5 to + 4.6
V
Terminal voltage*1
VT
0.5*2 to VCC + 0.3*3
V
Power dissipation
PT
1.0
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Storage temperature under bias
Tbias
10 to + 85
°C
Notes:
1. Relative to VSS
2. VT min: 3.0 V for pulse half-width 50 ns
3. Maximum voltage is 4.6 V


Description

The Hitachi HM62V864 is a CMOS static RAM organized 64-kword×8-bit. It realizes higher density, higher performance and low power consumption by mploying 0.8 mm Hi-CMOS process technology. It offers low power standby power dissipation; therefore, it is suitable for battery backup systems. The HM62V864 is packaged in a 525-mil SOP (460-mil body SOP) and a 8×20 mm TSOP with thickness of 1.2 mm, is available for high density mounting. TSOP package is suitable for cards.
