HM62V8512B

Features: • Single 3.0 V supply: 2.7 V to 3.6 V• Access time: 70/85 ns (max)• Power dissipation Active: 15 mW/MHz (typ) Standby: 3 µW (typ)• Completely static memory. No clock or timing strobe required• Equal access and cycle times• Common ...

product image

HM62V8512B Picture
See larger image
SeekIC No. : 004363549 Detail

HM62V8512B: Features: • Single 3.0 V supply: 2.7 V to 3.6 V• Access time: 70/85 ns (max)• Power dissipation Active: 15 mW/MHz (typ) Standby: 3 µW (typ)• Completely ...

HM62V8512B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM62V8512B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•  Single 3.0 V supply: 2.7 V to 3.6 V
•  Access time: 70/85 ns (max)
•  Power dissipation
 Active: 15 mW/MHz (typ)
  Standby: 3 µW (typ)
•  Completely static memory. No clock or timing strobe required
•  Equal access and cycle times
•  Common data input and output: Three state output
•  Directly LV-TTL compatible: All inputs
•  Battery backup operation


Pinout

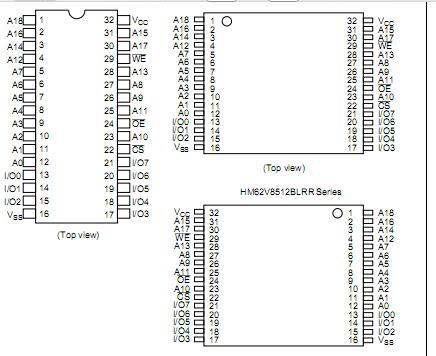

Connection Diagram


Specifications

Parameter Symbol Value Unit
Power supply voltage VCC 0.5 to +7.0 V
Voltage on any pin relative to VSS VT 0.5* 1 to VCC + 0.3* 2 V
Power dissipation PT 1.0 W
Operating temperature Topr 20 to +70
Storage temperature Tstg 55 to +125
Storage temperature under bias Tbias 20 to +85
Notes: 1. 3.0 V for pulse half-width 30 ns
2. Maximum voltage is 4.6 V


Description

The Hitachi HM62V8512B is a 4-Mbit static RAM organized 512-kword × 8-bit.  It realizes higher density, higher performance and low power consumption by employing 0.35 µm Hi-CMOS process technology.  The device, packaged in a 525-mil SOP (foot print pitch width) or 400-mil TSOP TYPE II is available for high density mounting. The HM62V8512B is suitable for battery backup system.
