HM62V8128B

Features: ` Single 3 V supply` Fast access time: 120/150 ns (max)` Power dissipation: - Active: 18 mW/MHz (typ) - Standby: 3 W (typ)` Completely static memory. No clock or timing strobe required` Equal access and cycle times` Common data input and output. Three state output` Directry CMOS compatib...

product image

HM62V8128B Picture
See larger image
SeekIC No. : 004363547 Detail

HM62V8128B: Features: ` Single 3 V supply` Fast access time: 120/150 ns (max)` Power dissipation: - Active: 18 mW/MHz (typ) - Standby: 3 W (typ)` Completely static memory. No clock or timing strobe required` Eq...

HM62V8128B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM62V8128B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single 3 V supply
`  Fast access time: 120/150 ns (max)
`  Power dissipation:
     - Active: 18 mW/MHz (typ)
     - Standby: 3 W (typ)
`  Completely static memory. No clock or timing strobe required
`  Equal access and cycle times
`  Common data input and output. Three state output
`  Directry CMOS compatible all inputs and outputs.
`  Capability of battery backup operation. 2 chip selection for battery backup


Pinout

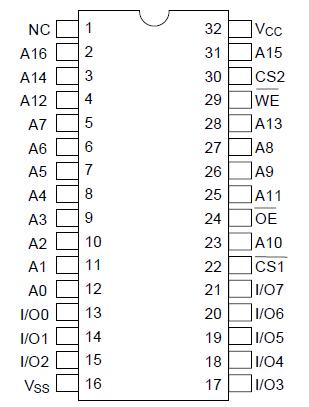

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Power supply voltage*1
VCC
0.5 to + 4.6
V
Terminal voltage*1
VT
0.5*2 to VCC + 0.3*3
V
Power dissipation
PT
1.0
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Storage temperature under bias
Tbias
10 to 85
°C
Notes:
1. Relative to VSS
2. VT min: 3.0 V for pulse half-width 30 ns
3. Maximum voltage is 4.6 V


Description

The Hitachi HM62V8128B is a CMOS static RAM organized 131,072-word × 8-bit. It realizes higher density, higher performance and low power consumption by employing 0.8 mm Hi-CMOS shrink process technology. HM62V8128B offers low power standby power dissipation; therefore, it is suitable for battery backup systems. The device, packaged in a 525-mil SOP (460-mil body SOP) or a 8 mm × 20 mm TSOP with thickness of 1.2 mm, is available for high density mounting. TSOP package is suitable for cards, and reverse type TSOP is also provided.
