HM62V16100I

Features: • Single 3.0 V supply: 2.7 V to 3.6 V• Fast access time: 45/55 ns (max)• Power dissipation: Active: 9 mW/MHz (typ) Standby: 1.5 W (typ)• Completely static memory. No clock or timing strobe required• Equal access and cycle times•...

product image

HM62V16100I Picture
See larger image
SeekIC No. : 004363535 Detail

HM62V16100I: Features: • Single 3.0 V supply: 2.7 V to 3.6 V• Fast access time: 45/55 ns (max)• Power dissipation: Active: 9 mW/MHz (typ) Standby: 1.5 W (typ)• Completely ...

HM62V16100I Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM62V16100I
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3.0 V supply: 2.7 V to 3.6 V
• Fast access time: 45/55 ns (max)
• Power dissipation:
 Active: 9 mW/MHz (typ)
 Standby: 1.5 W (typ)
• Completely static memory.
 No clock or timing strobe required
• Equal access and cycle times
• Common data input and output.
 Three state output
• Battery backup operation.
 2 chip selection for battery backup
• Temperature range: −40 to +85°C

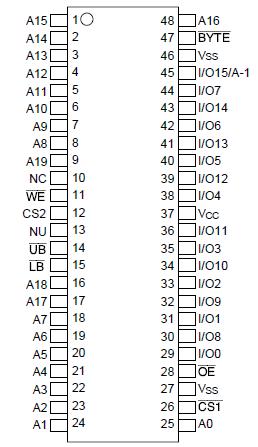

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Power supply voltage relative to VSS
VCC
−0.5 to +4.6
V
Terminal voltage on any pin relative to VSS
VT
−0.5*1 to VCC + 0.3*2
V
Power dissipation
PT
1.0
W
Storage temperature range
Tstg
−55 to +125
°C
Storage temperature range under bias
Tbias
−40 to +85
°C
Notes:
1. VT min: −2.0 V for pulse half-width 10 ns.
2. Maximum voltage is +4.6 V.


Description

The HM62V16100I Series is 16-Mbit static RAM organized 1-Mword × 16-bit. HM62V16100I Series has realized higher density, higher performance and low power consumption by employing CMOS process technology (6-transistor memory cell). It offers low power standby power dissipation; therefore, it is suitable for battery backup systems. It has the package variations of 48-bump chip size package with 0.75 mm bump pitch and 48-pin plastic TSOPI for high density surface mounting.
