HM62P2321

Features: • 3.3 V core power supply• 2.5 V I/O power supply• Fast clock access time: 5/5.5 ns (max)• Clock cycle times: 7.5/8.5/10 ns (min)• Address data pipeline capability• Internal input registers (Address, Data, Control)• Internal data output registers...

product image

HM62P2321 Picture
See larger image
SeekIC No. : 004363534 Detail

HM62P2321: Features: • 3.3 V core power supply• 2.5 V I/O power supply• Fast clock access time: 5/5.5 ns (max)• Clock cycle times: 7.5/8.5/10 ns (min)• Address data pipeline capab...

HM62P2321 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM62P2321
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.3 V core power supply
• 2.5 V I/O power supply
• Fast clock access time: 5/5.5 ns (max)
• Clock cycle times: 7.5/8.5/10 ns (min)
• Address data pipeline capability
• Internal input registers (Address, Data, Control)
• Internal data output registers
• Internal self-timed write cycle
• ADSP , ADSC and ADV burst control pins (Supports interleaving)
• Asynchronous output enable controlled three-state outputs
• Individual byte write control and global write
• Common data inputs and data outputs
• High board density 100-lead LQFP package

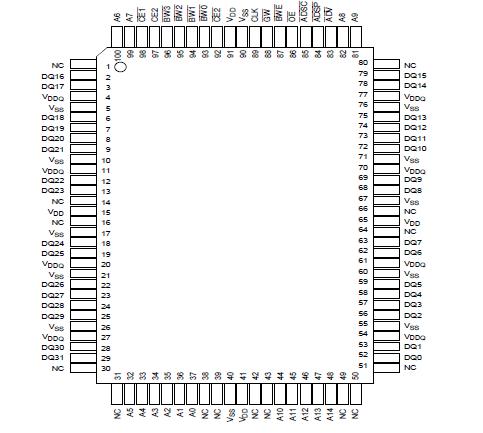

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage
VDD
0.5 to +4.6
V
Core I/O supply voltage
VDDQ
0.5 to VDD
V
Voltage on any pins relative to VSS (Except VDD)
VT
0.5 to VDD +0.5
V
Power dissipation
PT
1.2
W
Operating temperature
Topr
0 to +70
°C
Storage temperature range (with bias)
Tstg (bias)
10 to +85
°C
Storage temperature range
Tstg
55 to +125
°C
