Product Details

Description



Features:

·  3.3 V core power supply
·  2.5 V I/O power supply
·  Fast clock access time: 8.0 ns (max)
·  Clock cycle times: 15 ns (min)
·  Address data pipeline capability
·  Internal input registers (Address, Data, Control)
·  Internal data output registers
·  Internal self-timed write cycle
·  ADSP , ADSC and ADV burst control pins (Supports interleaving)
·  Asynchronous output enable controlled three-state outputs
·  Individual byte write control and global write
·  Power down state via ZZ
·  Common data inputs and data outputs
·  High board density 100-lead LQFP package


Pinout

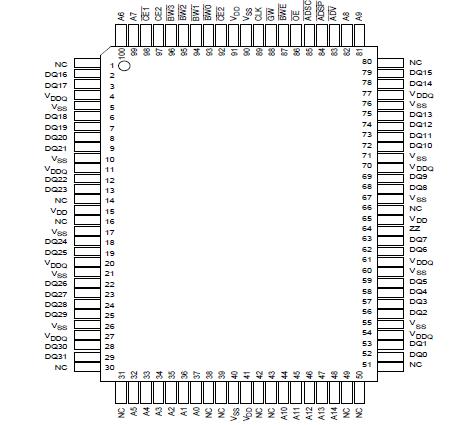

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Core Supply voltage
VDD
0.5 to +4.6
V
I/O supply voltage
VDDQ
0.5 to VDD
V
Voltage on any pins relative to VSS (Except VDD)
VT
0.5 to VDD +0.5
V
Power dissipation
PT
1.2
W
Operating temperature
Topr
0 to +70
°C
Storage temperature range (with bias)
Tstg(bias)
10 to +85
°C
Storage temperature range
Tbias
55 to +125
°C
