HM6287

Features: ` Single 5 V supply and high density 22-pin DIP and 24-pin SOJ` High speed: Fast access time 25/35/45/55/70 ns (max)` Low power - Operation: 300 mW (typ) - Standby: 100 W (typ)/10 mW (typ) (L-version)` Completely static memory` No clock or timing strobe required` Equal access and cycle t...

product image

HM6287 Picture
See larger image
SeekIC No. : 004363526 Detail

HM6287: Features: ` Single 5 V supply and high density 22-pin DIP and 24-pin SOJ` High speed: Fast access time 25/35/45/55/70 ns (max)` Low power - Operation: 300 mW (typ) - Standby: 100 W (typ)/10 mW (typ)...

HM6287 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM6287
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single 5 V supply and high density 22-pin DIP and 24-pin SOJ
`  High speed: Fast access time 25/35/45/55/70 ns (max)
`  Low power
     - Operation: 300 mW (typ)
     - Standby: 100 W (typ)/10 mW (typ) (L-version)
`  Completely static memory
`  No clock or timing strobe required
`  Equal access and cycle times
`  Directly TTL compatible: All inputs and outputs
`  Battery backup capability (L-version)


Pinout

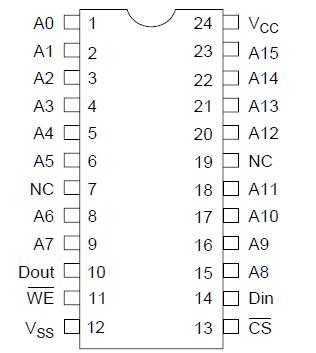

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on any pin relative to VSS
VT
0.5* to +7.0
V
Power dissipation
PT
1.0
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Storage temperature under bias
Tbias
10 to +85
°C
Note:
VT min: 3.5 V for pulse width 20 ns (HM6287 Series)
VT min: 2.0 V for pulse width 10 ns (HM6287H Series)




Description

The Hitachi HM6287/HM6287H is a high speed 64 k static RAM organized as 64-kword ×1-bit. It realizes high speed access time (25/35/45/55/70 ns) and low power consumption, employing CMOS process technology and high speed circuit design technology. It is most advantageous for high speed and high density memory, such as cache memory for mainframes or 32-bit MPUs. The HM6287/HM6287H is packaged in a 300-mil plastic DIP and SOJ, and is available for high density mounting. The low power version retains data with battery backup.
