HM62832UH

Features: · High speed: Fast access time 15/20 ns (max)· Low Power Standby: 15 mW (typ) (L-version) Operation: 675/600 mW (typ)· Single 5 V supply· Completely static memory No clock or timing strobe required· Equal access and cycle times· Common data input and output: Three state output· Directly ...

product image

HM62832UH Picture
See larger image
SeekIC No. : 004363513 Detail

HM62832UH: Features: · High speed: Fast access time 15/20 ns (max)· Low Power Standby: 15 mW (typ) (L-version) Operation: 675/600 mW (typ)· Single 5 V supply· Completely static memory No clock or timing strobe...

HM62832UH Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM62832UH
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  High speed: Fast access time 15/20 ns (max)
·  Low Power
     Standby: 15 mW (typ) (L-version)
     Operation: 675/600 mW (typ)
·  Single 5 V supply
·  Completely static memory
     No clock or timing strobe required
·  Equal access and cycle times
·  Common data input and output: Three state output
·  Directly TTL compatible: All inputs and outputs


Pinout

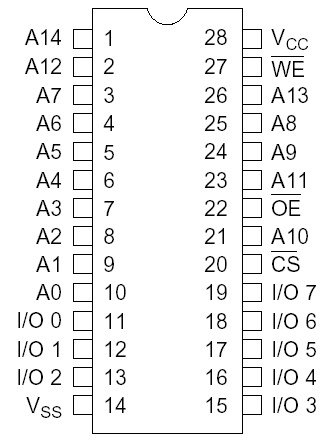

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply voltage*1 VCC 0.5*2 to +7.0 V
Voltage on any pin relative to VSS *1 VT 0.5*2 to VCC + 0.5 V
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70
Storage temperature Tstg 55 to +125
Storage temperature under bias Tbias 10 to +85
