HM628128B

Features: ` High speed - Fast access time: 70/85ns (max)` Low power - Standby: 10 W (typ) (L/L-SL version) - Operation: 50 mW/MHz (typ)` Single 5 V supply` Completely static memory No clock or timing strobe required` Equal access and cycle times` Common data input and output Three state output` Di...

product image

HM628128B Picture
See larger image
SeekIC No. : 004363509 Detail

HM628128B: Features: ` High speed - Fast access time: 70/85ns (max)` Low power - Standby: 10 W (typ) (L/L-SL version) - Operation: 50 mW/MHz (typ)` Single 5 V supply` Completely static memory No clock or timin...

HM628128B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM628128B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  High speed
     - Fast access time: 70/85ns (max)
`  Low power
     - Standby: 10 W (typ) (L/L-SL version)
     - Operation: 50 mW/MHz (typ)
`  Single 5 V supply
`  Completely static memory
     No clock or timing strobe required
`  Equal access and cycle times
`  Common data input and output
     Three state output
`  Directly TTL compatible
     All inputs and outputs
`  Capability of battery backup operation (L/L-SL version)
     2 chip selection for battery backup


Pinout

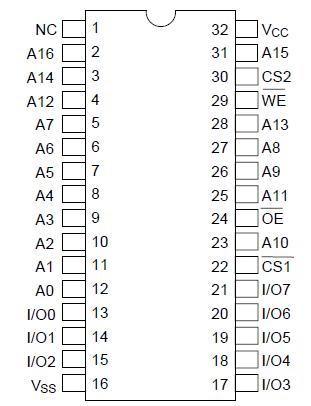

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage relative to VSS
VCC
0.3 to +7.0
V
Voltage on any pin relative to VSS
VT
0.5*1 to VCC + 0.3*2
V
Power dissipation
PT
1.0
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Storage temperature under bias
Tbias
10 to +85
°C
Note:
1. 3.0 V for pulse half-width 30 ns
2. Maximum voltage is 7.0 V.



Description

The Hitachi HM628128B is a CMOS static RAM organized 131,072-word × 8-bit.HM628128B realizes higher density, higher performance and low power consumption by employing 0.8 mm Hi-CMOS shrink process technology.It offers low power standby power dissipation, therefore, it is suitable for battery backup systems. The device,packaged in a 525 mil SOP or a 8 mm × 20 mm TSOP or a 600 mil plastic DIP is available.
