HM628127HB

Features: ` Single 5 V supply` Access time 15/20 ns (max)` Completely static memory - No clock or timing strobe required` Equal access and cycle times` Directly TTL compatible - All inputs and outputs` 400-mil 32-pin SOJ package` Center VCC and VSS type pinoutPinoutSpecifications Parameter ...

product image

HM628127HB Picture
See larger image
SeekIC No. : 004363506 Detail

HM628127HB: Features: ` Single 5 V supply` Access time 15/20 ns (max)` Completely static memory - No clock or timing strobe required` Equal access and cycle times` Directly TTL compatible - All inputs and outpu...

HM628127HB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM628127HB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single 5 V supply
`  Access time 15/20 ns (max)
`  Completely static memory
     - No clock or timing strobe required
`  Equal access and cycle times
`  Directly TTL compatible
     - All inputs and outputs
`  400-mil 32-pin SOJ package
`  Center VCC and VSS type pinout

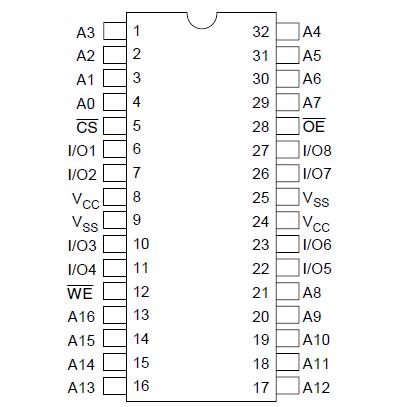

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage relative to VSS
VCC
0.3 to +7.0
V
Voltage on any pin relative to VSS
VT
0.5*1 to VCC+0.5
V
Power dissipation
PT
1.0*2/1.5*3
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Storage temperature under bias
Tbias
10 to +85
°C
Note:
1. VT min = 2.5 V for pulse width (under shoot) 10 ns
2. At still air condition
3. At air flow 1.0 m/s


Description

The HM628127HB is an asyncronous high speed static RAM organized as 128-k word ×8-bit. It realize high speed access time (15/20 ns) with employing 0.8 mm shrink CMOS process and high speed circuit designing technology. It is most appropriate for the application which requires high speed, high density memory and wide bit width configuration, such as cache and buffer memory in system. The HM628127HB is packaged in 400-mil 32-pin SOJ for high density surface mounting.
