HM62256A

Features: • High speed: Fast Access time 85/100/120/150 ns (max)• Low Power Standby: 5 µW (typ) (L/L-SL version) Operation: 40 mW (typ) (f = 1 MHz)• Single 5 V supply• Completely static memory No clock or timing strobe required• Equal access and cycle times̶...

product image

HM62256A Picture
See larger image
SeekIC No. : 004363494 Detail

HM62256A: Features: • High speed: Fast Access time 85/100/120/150 ns (max)• Low Power Standby: 5 µW (typ) (L/L-SL version) Operation: 40 mW (typ) (f = 1 MHz)• Single 5 V supply• ...

HM62256A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM62256A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High speed: Fast Access time 85/100/120/150 ns
  (max)
• Low Power
  Standby: 5 µW (typ) (L/L-SL version)
  Operation: 40 mW (typ) (f = 1 MHz)
• Single 5 V supply
• Completely static memory
   No clock or timing strobe required
• Equal access and cycle times
• Common data input and output: Three state
   output
• Directly TTL compatible: All inputs and outputs
• Capability of battery back up operation

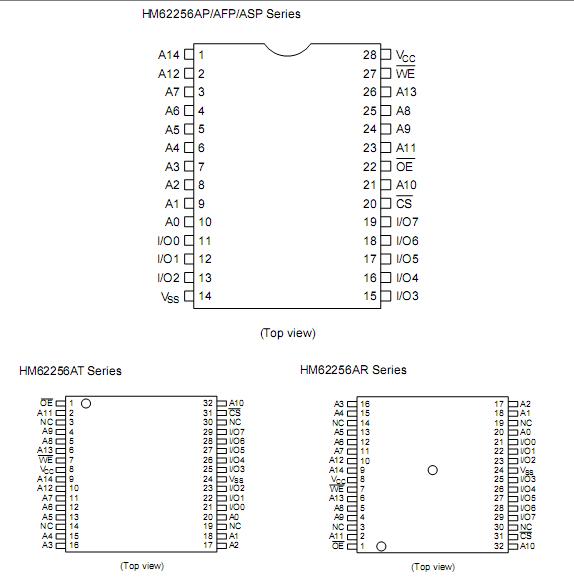

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VT 0.5*1 to +7.0 V
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70 °C
Storage temperature Tstg 55 to +125 °C
Storage temperature under bias Tbias 10 to +85 °C



Description

The Hitachi HM62256A is a CMOS static RAM organized 32-kword × 8-bit.  It realizes higher performance and low power consumption by employing 0.8 µm Hi CMOS process technology. The device, packaged in a 8 ×14 mm TSOP with thickness of 1.2 mm, 450-mil SOP (foot print pitch width), 600-mil plastic DIP, or 300-mil plastic DIP, is available for high density mounting.  TSOP package is suitable for cards, and reverse type TSOP is also provided.  HM62256A offers low power standby power dissipation; therefore, it is suitable for battery back up system.
