HM51W4265C

Features: · Single 3.3 V (±0.15 V) (HM51W4265C-6R) Single 3.3 V (±0.3 V) (HM51W4265C-6/7/8)· High speed- Access time: 60 ns/70 ns/80 ns (max)· Low power dissipation- Active mode: 576 mW/552 mW/468 mW/396 mW (max)- Standby mode: 6.9 mW (max) (HM51W4265C-6R) 7.2 mW (max) (HM51W4265C-6/7/8) 0.69 mW (...

product image

HM51W4265C Picture
See larger image
SeekIC No. : 004363416 Detail

HM51W4265C: Features: · Single 3.3 V (±0.15 V) (HM51W4265C-6R) Single 3.3 V (±0.3 V) (HM51W4265C-6/7/8)· High speed- Access time: 60 ns/70 ns/80 ns (max)· Low power dissipation- Active mode: 576 mW/552 mW/468 m...

HM51W4265C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM51W4265C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Single 3.3 V (±0.15 V) (HM51W4265C-6R) Single 3.3 V (±0.3 V) (HM51W4265C-6/7/8)
·  High speed
-  Access time: 60 ns/70 ns/80 ns (max)
·  Low power dissipation
-  Active mode: 576 mW/552 mW/468 mW/396 mW (max)
-  Standby mode: 6.9 mW (max) (HM51W4265C-6R) 7.2 mW (max) (HM51W4265C-6/7/8) 0.69 mW (max)(L-version) (HM51W4265CL-6R) 0.72 mW (max) (L-version) (HM51W4265CL-6/7/8)
·  EDO page mode capability
·  512 refresh cycles: 8 ms 128 ms (L-version)
·  3 variations of refresh
-  RAS-only refresh
-  CAS-before-RAS refresh
-  Self refresh
·  2CAS-byte control
·  Battery backup operation (L-version)

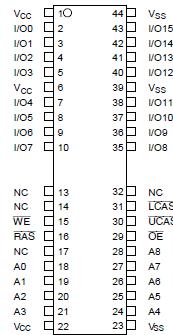

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VT 0.5 to +4.6 V
Supply voltage relative to VSS VCC 0.5 to +4.6 V
Short circuit output current Iout 50 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70
Storage temperature Tstg 55 to +125



Description

The Hitachi HM51W4265C Series is a CMOS dynamic RAM organized as 262,144-word ×16-bit.

HM51W4265C Series has realized higher density, higher performance and various functions by employing 0.8 mm CMOS process technology and some new CMOS circuit design technologies. It offers Extended Data Out (EDO) Page Mode as a high speed access mode. Multiplexed address input permits them to be packaged in standard 400-mil 44-pin plastic TSOPII.
