Product Details

Description

Features:

• Single 3.3 V (±0.3 V)
• Access time: 50 ns/60 ns/70 ns (max)
• Power dissipation
-Active mode : 324 mW /288 mW /252 mW (max) (HM51W16405 Series)
: 360mW/324 mW/288 mW (max) (HM51W17405 Series)
- Standby mode : 7.2 mW (max)
: 0.36 mW (max) (L-version)
• EDO page mode capability
• Long refresh period
- 4096 refresh cycles : 64 ms (HM51W16405 Series)
: 128 ms (L-version)
- 2048 refresh cycles : 32 ms (HM51W17405 Series)
: 128 ms (L-version)
• 4 variations of refresh
-RAS-only refresh
- CAS-before-RAS refresh
- Hidden refresh
- Self refresh (L-version)

Pinout

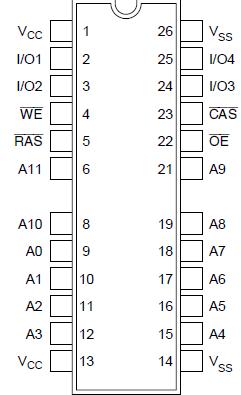

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Voltage on any pin relative to V_SS	V_T	0.5 to V_CC + 0.5 (+ 4.6 V (max))	V
Supply voltage relative to V_SS	V_CC	0.5 to +4.6	V
Short circuit output current	Iout	50	mA
Power dissipation	P_T	1.0	W
Operating temperature	Topr	0 to +70
Storage temperature	Tstg	55 to +125

Description

The Hitachi HM51W16405 Series, HM51W17405 Series are CMOS dynamic RAMs organized 4,194,304- word × 4-bit. They employ the most advanced CMOS technology for high performance and low power.

The HM51W16405 Series, HM51W17405 Series offer Extended Data Out (EDO) Page Mode as a high speed access mode.They have package variations of standard 300-mil 26-pin plastic SOJ and 300-mil 26- pin plastic TSOP.
