Product Details

Description



Features:

·  Single 3.3 V (±0.3 V)
·  High speed
- Access time: 50 ns/60 ns/70 ns (max)
·  Low power dissipation
- Active mode : TBD/378 mW/324 mW (max) (HM5164400A Series)
: TBD/558 mW/486 mW (max) (HM5165400A Series)
- Standby mode : 7.2 mW (max)
: TBD (L-version)
·  Fast page mode capability
·  Long refresh period
- 8192 RAS only refresh cycles : 64 ms (HM5164400A Series) 4096 CBR/Hidden refresh cycles : 64 ms
: 128 ms (L-version)
-4096 RAS only refresh cycles : 64 ms (HM5165400A Series) 4096 CBR/Hidden refresh cycles : 64 ms
: 128 ms (L-version)

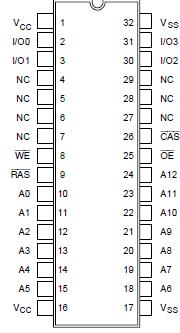

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VT 0.5 to VCC + 0.5 ( 4.6 V (max)) V
Supply voltage relative to VSS VCC 0.5 to +4.6 V
Short circuit output current Iout 50 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70
Storage temperature Tstg 55 to +125



Description

The Hitachi HM5164400A Series, HM5165400A Series are CMOS dynamic RAMs organized as 16,777,216- word × 4-bit. They employ the most advanced CMOS technology for high performance and low power. The HM5164400A Series, HM5165400A Series offer Fast Page Mode as a high speed access mode. They have the package variations of standard 400-mil 32-pin plastic SOJ and standard 400-mil 32-pin plastic TSOPII.
