Product Details

Description



Features:

·  Single 3.3 V (±0.3 V)
·  Access time: 50 ns/60 ns/70 ns (max)
·  Power dissipation
- Active mode : TBD/450 mW/378 mW (max) (HM5164165A Series)
: TBD/648 mW/558 mW (max) (HM5165165A Series)
- Standby mode : 7.2 mW (max)
: 0.72 mW (max) (L-version)
·  EDO page mode capability
·  Refresh cycles
- RAS-only refresh 8192 cycles /64 ms (HM5164165A) 4096 cycles /64 ms (HM5165165A) /128 ms (HM5165165AL) (L-version)
- CBR/Hidden refresh 4096 cycles /64 ms (HM5164165A, HM5165165A) /128 ms (HM5165165AL) (L-version)




Pinout

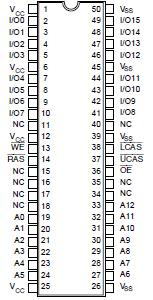

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VT 0.5 to VCC + 0.5 ( 4.6 V (max)) V
Supply voltage relative to VSS VCC 0.5 to +4.6 V
Short circuit output current Iout 50 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70
Storage temperature Tstg 55 to +125



Description

The Hitachi HM5164165A Series, HM5165165A Series are CMOS dynamic RAMs organized as 4,194,304- word ×16-bit. They employ the most advanced CMOS technology for high performance and low power.

HM5164165A Series, HM5165165A Series offer Extended Data Out (EDO) Page Mode as a high speed access mode. They have the package variations of standart 400 mil 50-pin plastic SOJ and standerd 400 mil 50-pin plastic TSOPII
