Product Details

Description



Features:

`  Single 5 V (± 10%)
`  High speed
     - Access time: 60 ns/70 ns/80 ns (max)
`  Low power dissipation
     - Active mode: 605 mW/550 mW/495 mW (max)
     - Standby mode:
     11 mW (max)
     1.1 mW (max) (L-version)
`  Fast page mode capability
`  1,024 refresh cycles: 16 ms
     128 ms (L-version)
`  2 variations of refresh
     - RAS -only refresh
     - CAS -before- RAS refresh
`  Battery backup operation (L-version)
`  Self refresh operation (HM51S4800C)

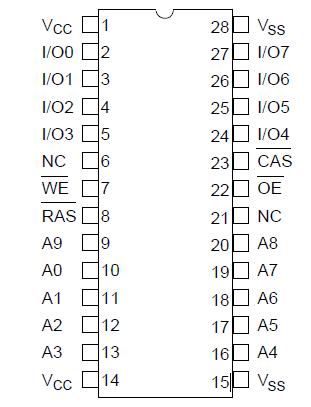

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on any pin relative to VSS
VT
1.0 to + 7.0
V
Supply voltage relative to VSS
VCC
1.0 to + 7.0
V
Short circuit output current
Iout
50
mA
Power dissipation
PT
1.0
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C



Description

The Hitachi HM51(S)4800C are CMOS dynamic RAM organized as 524,288-word ×8-bit. It has realized higher density, higher performance and various functions by employing 0.8 mm CMOS process technology and some new CMOS circuit design technologies. The HM51(S)4800C offer Fast Page Mode as a high speed access mode. Multiplexed address input permits the HM51(S)4800C to be packaged in standard 400-mil 28-pin plastic SOJ and standard 400-mil 28-pin plastic TSOPII. Internal refresh timer enables HM51S4800C self refresh operation.
