Product Details

Description



Features:

• Single 5 V (±10%)
• High speed
   - Access time: 70 ns/80 ns (max)
• Low power dissipation
   - Active mode: 660 mW/578 mW (max)
   - Standby mode: 11 mW (max)
   1.1 mW (max) (L-version)
• Fast page mode capability
• 1024 refresh cycles: 16 ms
   128 ms (L-version)
• 2 WE-byte control
• 2 variations of refresh
   - RAS -only refresh
   - CAS -before- RAS refresh
• Battery backup operation (L-version)
• Self refresh operation (HM51S4170C)

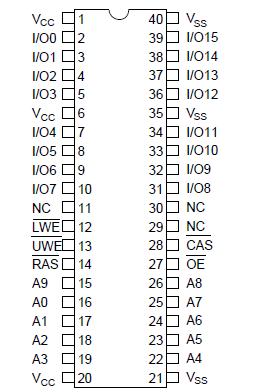

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on any pin relative to VSS
VT
1.0 to + 7.0
V
Supply voltage relative to VSS
VCC
1.0 to + 7.0
V
Short circuit output current
Iout
50
mA
Power dissipation
PT
1.0
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C



Description

The Hitachi HM51(S)4170C are CMOS dynamic RAM organized as 262,144-word ×16-bit. It has realized higher density, higher performance and various functions by employing 0.8 mm CMOS process technology and some new CMOS circuit design technologies. It offers fast page mode as a high speed access mode. Multiplexed address input permits the HM51(S)4170C to be packaged in standard 400-mil 40-pin plastic SOJ and standard 400-mil 44-pin plastic TSOPII. Internal refresh timer enables HM51S4170C self refresh operation.
